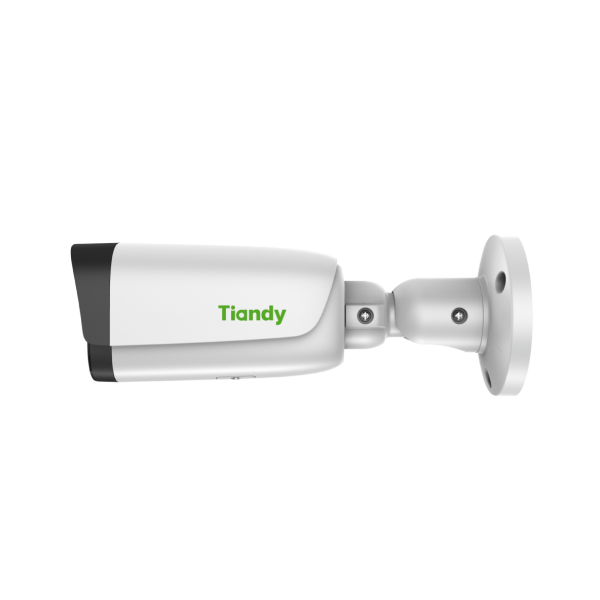

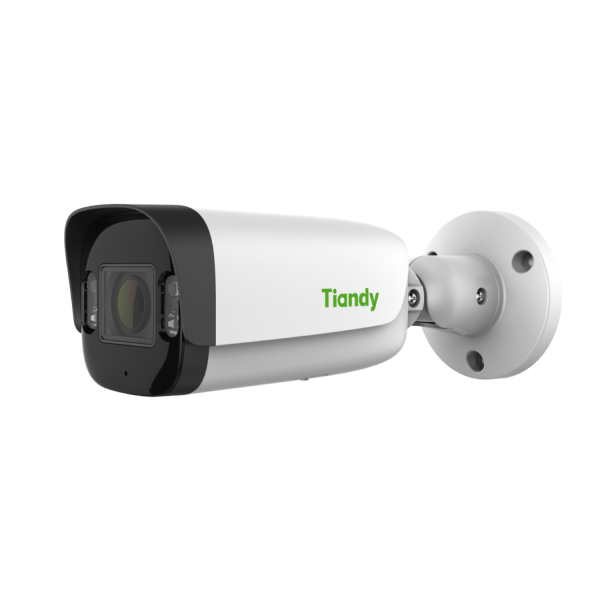

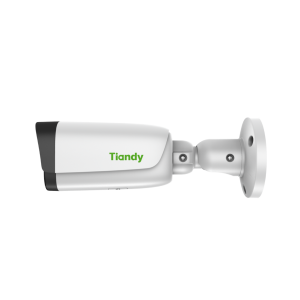

4MP Fixed Color Maker Bullet Camera
TC-C34UP
Spec: W/E/Y/M/4mm/V4.0
__________________________________
· Full Metal Housing
· Up to 2560×1440@25fps
· S+265/H.265/H.264
· Min. illumination Color: 0.0002Lux@F1.0
Spec: W/E/Y/M/4mm/V4.0
__________________________________
· Full Metal Housing
· Up to 2560×1440@25fps
· S+265/H.265/H.264
· Min. illumination Color: 0.0002Lux@F1.0
محصولات مرتبط
-
· Full Metal Housing
· Up to 2560×1440@25fps
· S+265/H.265/H.264
· Min. illumination Color: 0.0002Lux@F1.0
· 120dB WDR
· 4 Warmlights, 20~30m
· Support tripwire and perimeter
· Built-in Mic, SD Card Slot, Reset Button
· Operating Conditions -40℃~60℃, 0~95% RH
· POE, IP67
|
Camera |
|
| Image Sensor | 1/1.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.0002Lux@ (F1.0, AGC ON), B/W: 0Lux with LED on |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Bracket, pan 0~360°, tilt 0~75°, roate 0~360° |
|
Lens |
|
| Lens Type | Fixed |
| Focus | 4mm |
| Lens Mount | M12 |
| Aperture | F1.0, Fixed |
| FOV | Horizontal field of view: 92.1° |
|
Illuminator |
|
| IR LEDs | N/A |
| IR Range | N/A |
| Wavelength | N/A |
| White LEDs/Warmlights | 4 Warmlights, 20~30m |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711/G.711U/ADPCM |
| Audio Bit Rate | 8K~48Kbps |
|
Image |
|
| Max. Resolution | 2560x1440 |
| Main Stream | PAL: 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720) |
| NTSC: 25fps (2560×1440), 30fps (2304×1296, 1920×1080, 1280×720) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | N/A |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | N/A |
| OSD | 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Picture Overlay | N/A |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
|
Feature |
|
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict |
| Video Analytics | Tripwire, Perimeter |
| Early Warning(EW) | N/A |
|
Network |
|
| ANR | Yes(Only Support Tiandy ANR NVR) |
| Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G) |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web5 |
|
Interface |
|
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | Mic in |
| Alarm I/O | N/A |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 512 GB |
|
General |
|
| Firmware Version | - |
| Web Client Language | 15 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Farsi, Arabic, Vietnamese |
| Operating Conditions | -40℃～60℃, 0～95% RH |
| Power Supply | DC 12V±25%, PoE (802.3af) |
| Power Consumption | MAX: 9W (12V) MAX: 10W (PoE) |
| Protection | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Heater | N/A |
| Dimensions | 239×90×90mm (9.41×3.54×3.54inch) |
| Weight | 0.9Kg (1.98lb) |
