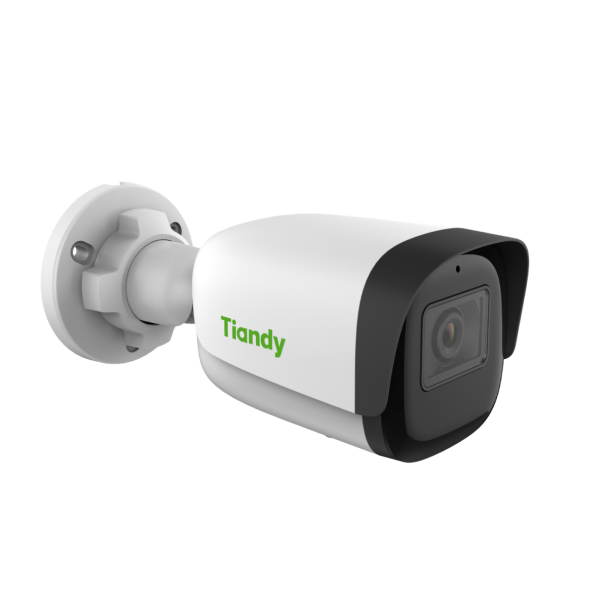

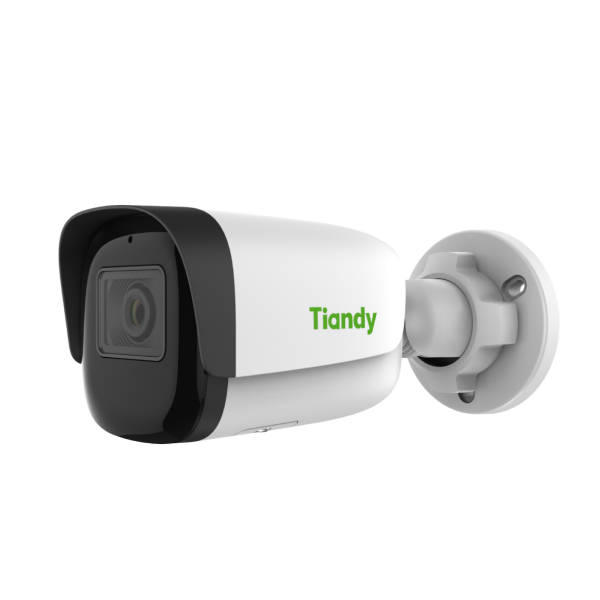

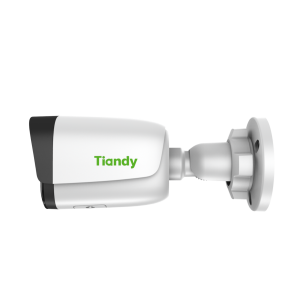

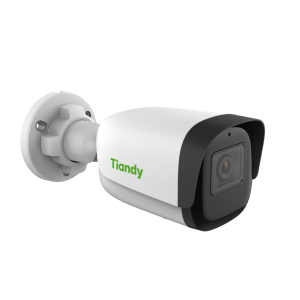

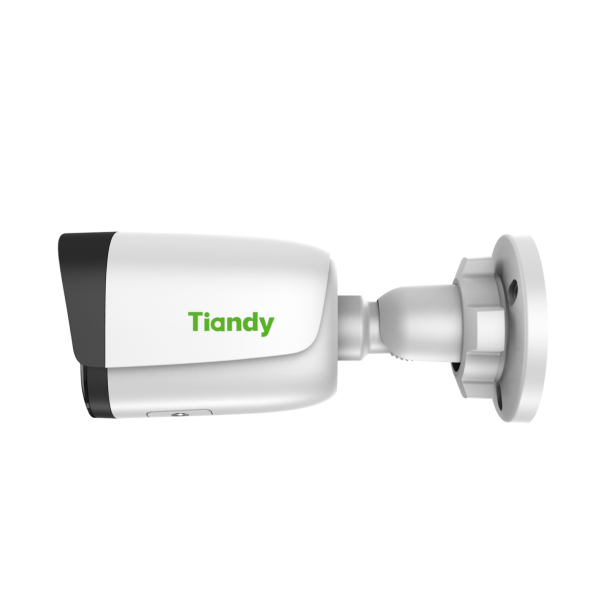

2MP Fixed Starlight IR Bullet Camera

Tiandy
TC-C32WS
Spec: I5/E/Y/C/H/2.8mm(4mm)
__________________________________
· Default: Metal+Plastic, M: Metal Housing
· Up to 1920x1080@30fps
· S+265/H.265/H.264
· 0.002Lux@F1.6
· Smart IR, IR Range: 50m

· Default: Metal+Plastic, M: Metal Housing

· Up to 1920x1080@30fps

· S+265/H.265/H.264

· Min. illumination Color: 0.002Lux@F1.6

· 120dB WDR

· Smart IR, IR Range: 50m

· Support tripwire and perimeter

· Built-in Mic, SD Card Slot, Reset Button

· Operating Conditions -35°~65°, 0~95% RH

· POE, IP67




Camera

Image Sensor

1/2.8" CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

Dual IR Cut Filter with Auto Switch

Wide Dynamic Range

120dB

Angle Adjustment

Bracket, pan 0~360°, tilt 0~75°, roate 0~360°

Lens

Lens Type

Fixed

Focus

2.8mm/4mm

Lens Mount

M12

Aperture

F1.6, Fixed

FOV

Horizontal field of view: 101.3°

Illuminator

IR LEDs

2

IR Range

Up to 50m

Wavelength

850nm

White LEDs/Warmlights

N/A

Compression Standard

Video Compression

S+265/H.265/H.264

Video Bit Rate

32Kbps~6Mbps

Audio Compression

G.711/G.711U/ADPCM

Audio Bit Rate

8K~48Kbps


Max. Resolution

1920X1080

Main Stream

PAL: 25fps(1920×1080, 1280×720, 704×576, 640×480)

NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)

Sub Stream

PAL: 25fps(704×576, 704×288, 640×360, 352×288)

NTSC: 30fps(704×480, 704×240, 640×360, 352×240)

Third Stream

N/A

Image Setting

Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Image Enhancement

BLC/3D DNR/HLC

ROI

N/A

OSD

16×16, 32×32, 48×48,  adaptable size, Letters Such as Week, Date, Time, Total 3 Regions

Picture Overlay

N/A

Privacy Mask

Yes, 4 regions

Smart Defog

Yes

Feature

Alarm Trigger

 Motion Detection, Mask Alarm, IP Address Conflict

Video Analytics

Tripwire, Perimeter

Early Warning(EW)

N/A

Network

ANR

N/A

Protocols

TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, ICMP, RTP, RTSP, UPnP

System Compatibility

ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G)

Remote Connection

≤7

Client

Easy7, EasyLive

Web Version

Web6

Interface

Communication Interface

1 RJ45 10M/ 100M self adaptive Ethernet port

Audio I/O

Mic in

Alarm I/O

1/1

Reset Button

Yes

On-board storage

Built-in MicroSD card slot, up to 512 GB

General

Firmware Version

-

Web Client Language

17 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,  Polish, Dutch, Hebraism, Arabic, Vietnamese, German, Ukrainian

Operating Conditions

-35℃65℃, 095% RH

Power Supply

DC 12V±25%, PoE (802.3af)

Power Consumption

MAX: 6W (12V) MAX: 7W (PoE)

Protection

IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017

Heater

N/A

Dimensions

160.8 68×74.5mm (6.33 2.68 2.93 inch)

Weight

0.3Kg (0.66lb)
