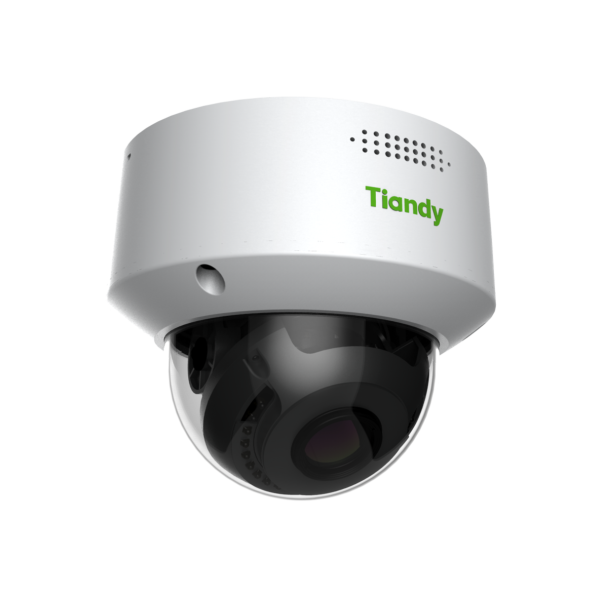

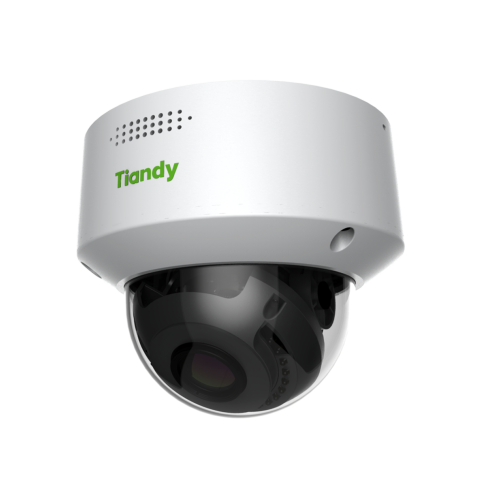

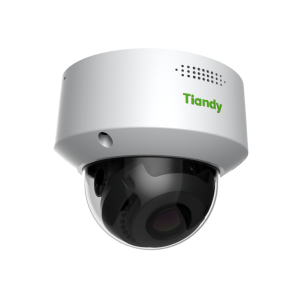

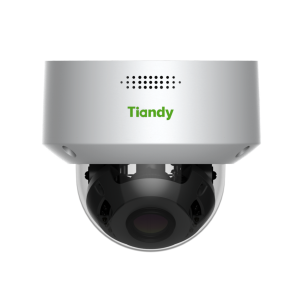

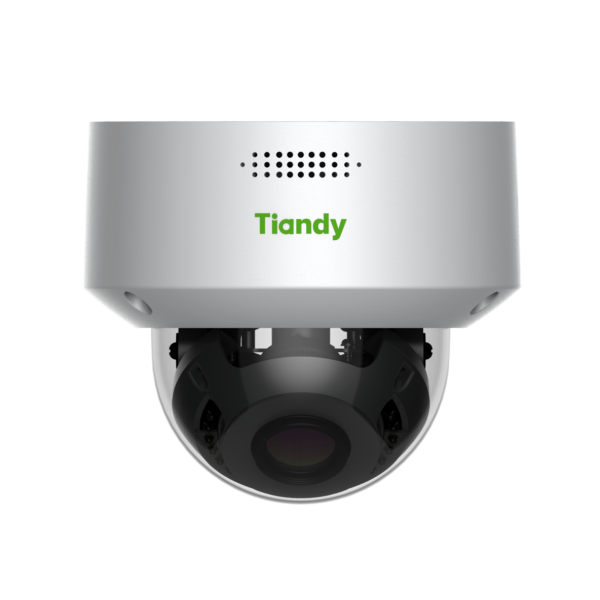

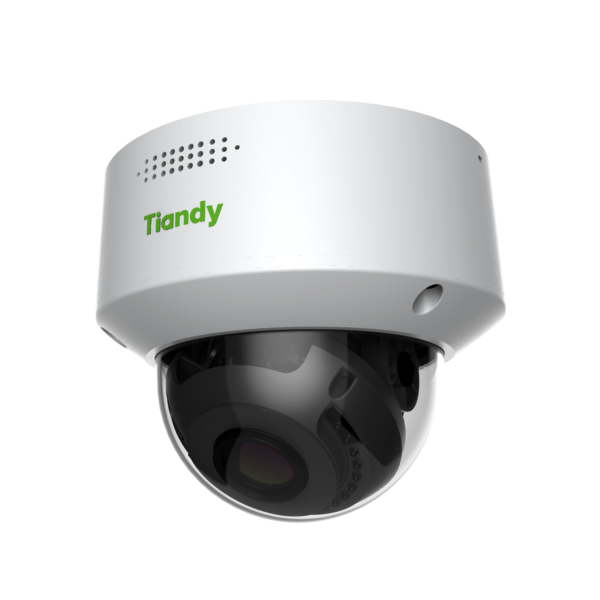

5MP Super Starlight Motorized IR Dome Camera (2.7-13.5mm)
Spec: I5W/A/E/Y/M/H/2.7-13.5mm/V4.0
__________________________________
· Motorized Lens 2.7-13.5mm
· Up to 3072×1728@30fps, 1920x1080@60fps
· S+265/H.265/H.264/M-JPEG
· 0.0008Lux@F1.2
· Smart IR Range: 50m
-
·Full Metal Housing
·Motorized Lens 2.7-13.5mm
·Up to 3072×1728@30fps, 1920x1080@60fps·S+265/H.265/H.264/M-JPEG
·Min. illumination Color: 0.0008Lux@F1.2·Smart IR, IR Range: 50m
·Built in Mic&Speaker
·Support Video Analytics
·Support Human/Vehicle Classification
·Support Early Warning
·Support Face Capture Mode
·Built-in Mic, audio I/O 1/1, alarm I/O 2/1
·Plugin Free
·Operating Conditions -35°C~65°C, 0~95% RH
·POE, IP67, IK10
|
Camera |
|
| Image Sensor | 1/1.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.0008Lux@ (F1.2, ACG ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | pan 0~330°, tilt 0~75°, roate 0~350° |
|
Lens |
|
| Lens Type | Motorized |
| Focus | 2.7-13.5mm |
| Lens Mount | Φ14 |
| Aperture | F1.2~F2.2, Motorized |
| FOV | Horizontal field of view: 106.9°~48.7° |
|
Illuminator |
|
| IR LEDs | 14 |
| IR Range | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 4 |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | 8K~48Kbps |
|
Image |
|
| Max. Resolution | 3072x1728 |
| Main Stream | PAL: 25fps (3072×1728, 2560×1440, 2304×1296), 50fps (1920×1080, 1280×720) |
| NTSC: 30fps (3072×1728, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream |
PAL: 25fps(1920×1080, 1280×720, 704×576, 704×288, 352×288) NTSC: 30fps(1920×1080, 1280×720, 704×480, 704×240, 352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC/Corridor Format |
| ROI | Support 8 fixed region of coding |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privacy Mask |
Yes, 4 regions |
| Smart Defog | Yes |
|
Feature |
|
| Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Sever Exception |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Safety Helmet Detection, Human/Vehicle Classification |
| Early Warning(EW) | Yes |
|
Network |
|
| ANR | Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, SNTP, RTMP, SFTP, NFS |
| System Compatibility | ONVIF (PROFILE S/T/G/M), SDK, Milestone, CGI, P2P |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive Plus |
| Web Version | Web6 |
|
Interface |
|
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port, RS 485 |
| Audio | 1/1, Mic in |
| Alarm | 2/1 |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to512 GB |
|
General |
|
| Firmware Version | - |
| Web Client Language | 17 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese, Ukrainian, German |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC12V±25%/PoE |
| Power Consumption | MAX: 7.5W (12V) MAX: 9W (POE) |
| Protection |
IP67, IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Heater | N/A |
| Dimensions | Φ143×124mm (Φ5.63×4.88 inch) |
| Weight | 0.85Kg (1.87lb) |
