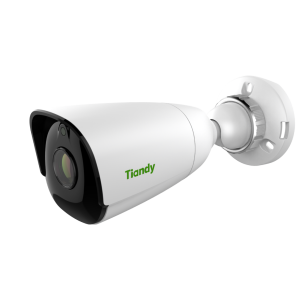

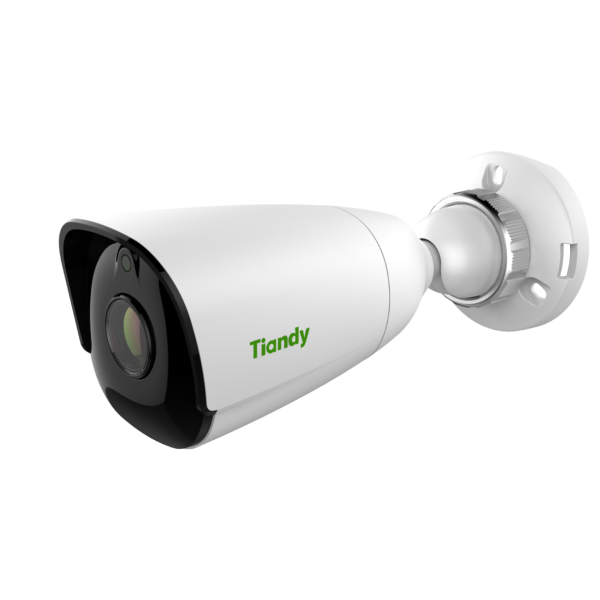

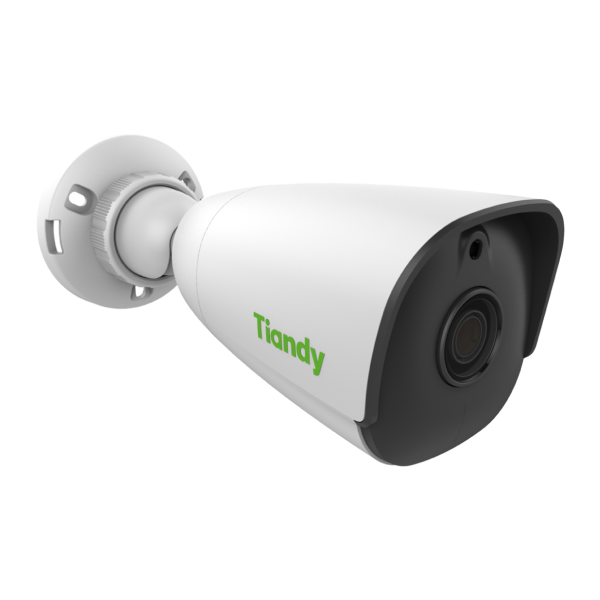

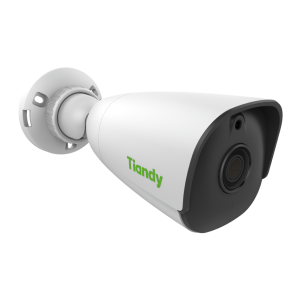

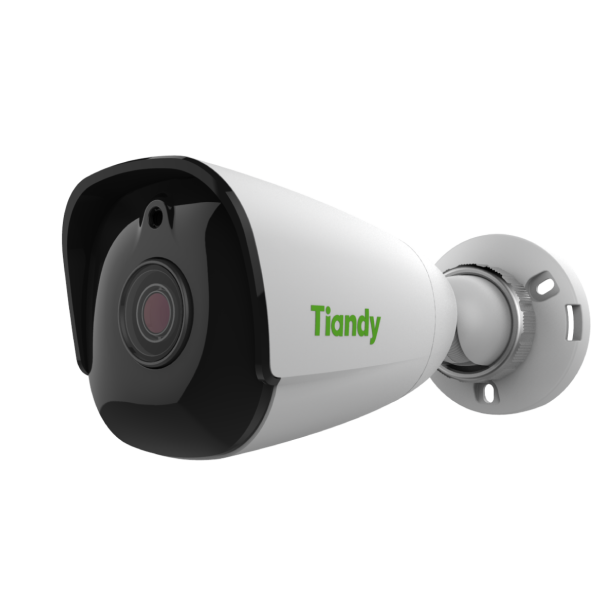

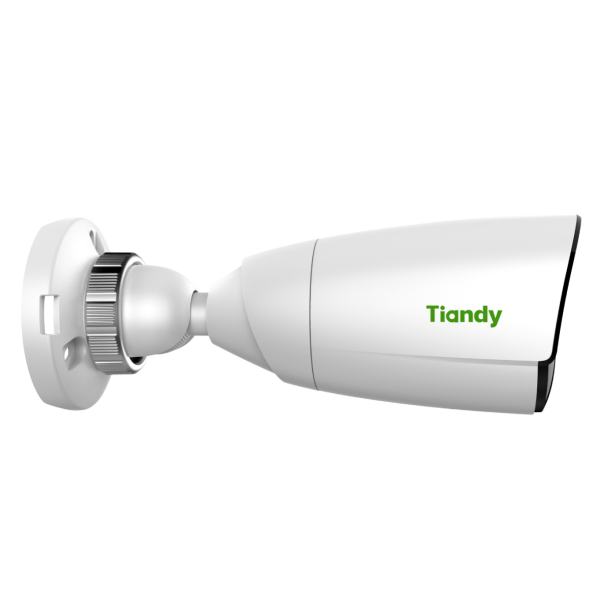

5MP Starlight IR Bullet Camera
Spec: I5/E/M/N/2.8mm(4mm)/V4.0
__________________________________
· Full Metal Housing
· Up to 2592x1944@30fps, 1920x1080@60fps
· S+265/H.265/H.264/M-JPEG
· 0.002Lux@F1.6
· Smart IR, IR Range: 50m
-
·Full Metal Housing
·Up to 2592x1944@30fps, 1920x1080@60fps
·S+265/H.265/H.264/M-JPEG
·Min. illumination Color: 0.002Lux@F1.6
·Smart IR, IR Range: 50m
·Support Video Analytics
·Support Human/Vehicle Classification
·Support Face Capture Mode
·Plugin Free
·Operating Conditions -40°C~65°C, 0~95% RH ·POE, IP67
|
Camera |
|
| Image Sensor | 1/2.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Bracket, pan 0~360°, tilt 0~75°, roate 0~360° |
|
Lens |
|
| Lens Type | Fixed |
| Focus | 2.8mm/4mm |
| Lens Mount | M12 |
| Aperture | F1.6, Fixed |
| FOV | Horizontal field of view: 95.6° (2.8mm)/77.9° (4mm) |
|
Illuminator |
|
| IR LEDs | 2 |
| IR Range | Up to 50m |
| Wavelength | 850nm |
| White LEDs | N/A |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | N/A |
| Audio Bit Rate | N/A |
|
Image |
|
| Max. Resolution | 2592x1944 |
| Main Stream | PAL: 20fps (2592×1944), 25fps ( 2560×1440, 2304×1296, 1920×1080, 1280×960, 1280×720) |
|
NTSC: 30fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720) |
|
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream |
PAL: 25fps(1920×1080, 1280×720, 704×576, 704×288, 640×360, 352×288) NTSC: 30fps(1920×1080, 1280×720, 704×480, 704×240, 640×360, 352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC/Corridor Format |
| ROI | Support 8 fixed region of coding |
| OSD |
16×16, 32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions |
| Picture Overlay | Yes |
| Privace Mask |
Yes, 4 regions |
| Smart Defog | Yes |
|
Feature |
|
| Alarm Trigger | Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Sever Exception, Voltage Abnormal |
| Video Analytics |
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Safety Helmet Detection, Human/Vehicle Classification |
| Early Warning(EW) | N/A |
| Intelligent Coding | N/A |
| Intelligent Image | N/A |
| Intelligent Alarm | N/A |
|
Network |
|
| ANR | Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP, NFS |
| System Compatibility | ONVIF (PROFILE S/T), SDK, CGI, P2P |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web6 |
|
Interface |
|
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio | N/A |
| Alarm | N/A |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
|
General |
|
| Firmware Version | - |
| Web Client Language |
15 languages |
| Operating Conditions |
-40 ~65 , 0~95% RH |
| Power Supply | DC12V±25%/PoE |
| Power Consumption | MAX: 6W (12V) MAX: 7W (POE) |
| Protection | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Heater | N/A |
| Dimensions | 189×70×70mm (7.44×2.76×2.76 inch) |
| Weight | 0.45Kg (0.99lb) |
