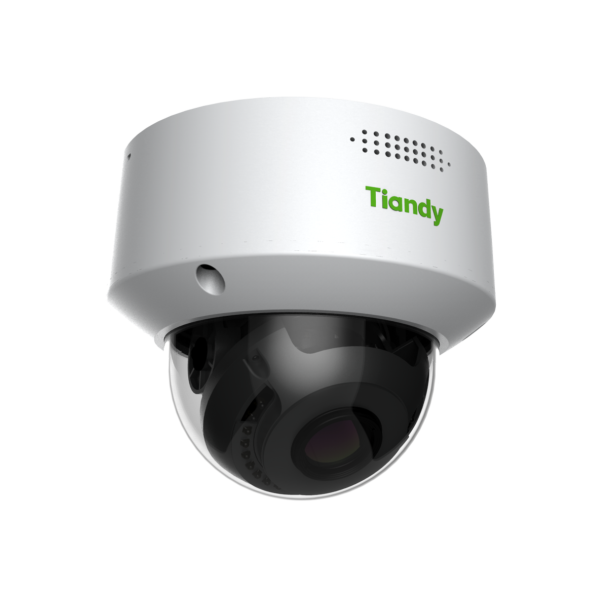

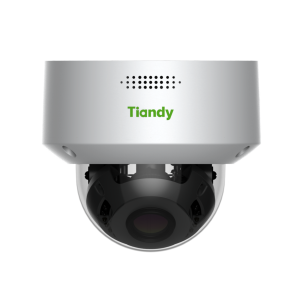

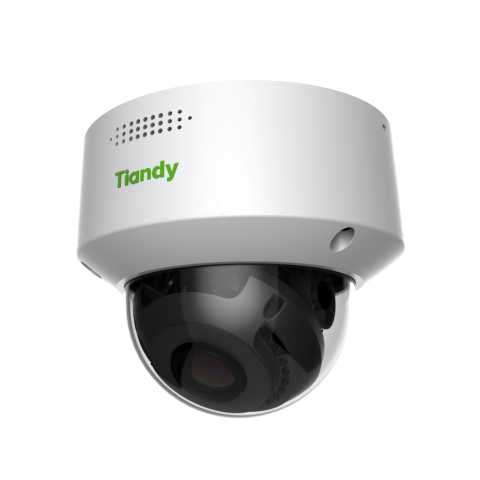

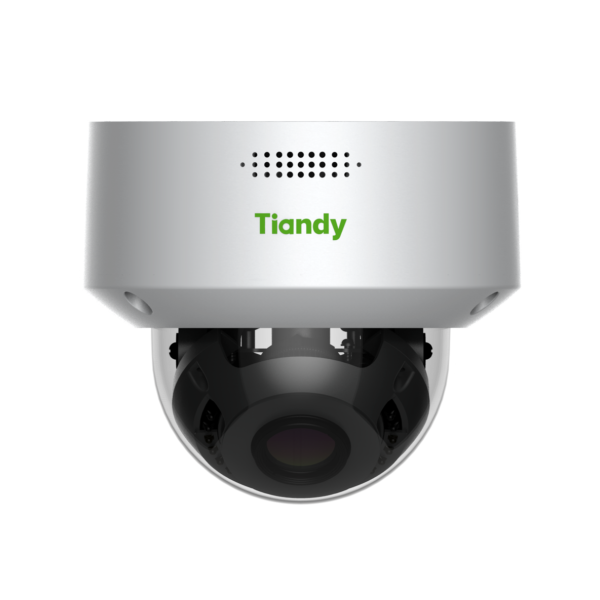

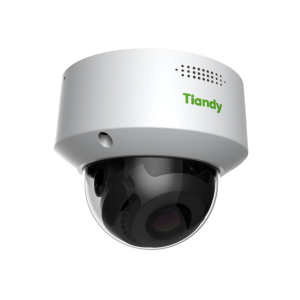

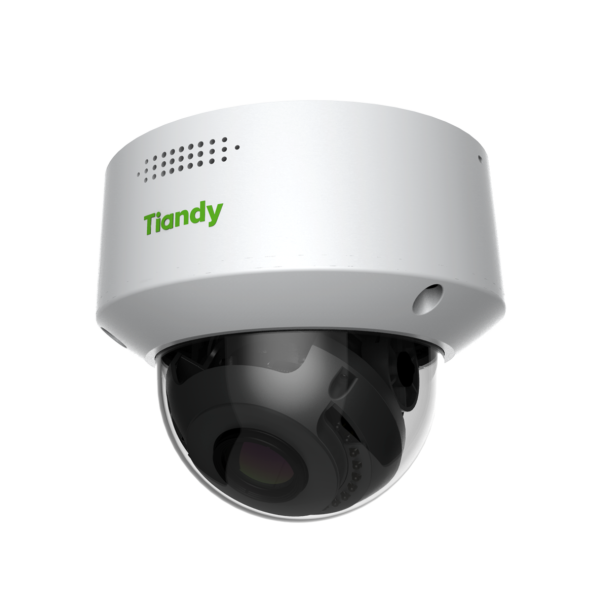

8MP Starlight Motorized IR Dome Camera

Tiandy
TC-C38MS
Spec: I5/A/E/Y/M/H/2.7-13.5mm
__________________________________
· Full Metal Housing
· 2.7-13.5mm
· Up to 3840x2160@20fps
· 0.003Lux@F1.6
· Smart IR, IR Range: 50m

· Full Metal Housing

· Motorized Lens 2.7-13.5mm

· Up to 3840x2160@20fps

· S+265/H.265/H.264/M-JPEG

· Min. illumination Color: 0.003Lux@F1.6

· Smart IR, IR Range: 50m

· Support Video Analytics

· Support Human/Vehicle Classification

· Support Face Capture Mode

· Built-in Mic, audio I/O 1/1, alarm I/O 2/1

· Plugin Free

· Operating Conditions -35℃~65℃, 0~95% RH

· POE, IP67, IK10




Camera

Image Sensor

1/2.8" CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.003Lux@ (F1.6, AGC ON), B/W: 0Lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

Dual IR Cut Filter with Auto Switch

Wide Dynamic Range

120dB

Angle Adjustment

pan 0~330°, tilt 0~75°, roate 0~350°

Lens

Lens Type

Motorized

Focus

2.7-13.5mm

Lens Mount

Φ14

Aperture

F1.6~F3.3, Fixed

FOV

Horizontal field of view: 102.7°~29°

Illuminator

IR LEDs

18

IR Range

Up to 50m

Wavelength

850nm

White/Warmlight LEDs

N/A

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

G.711A/G.711U/ADPCM/AAC

Audio Bit Rate

8K~48Kbps


Max. Resolution

3840x2160

Main Stream

PAL: 20fps (3840×2160, 3072×2048), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)

NTSC: 20fps (3840×2160, 3072×2048), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)

Sub Stream

PAL: 25fps (704×576, 704×288, 640×480, 352×288)

NTSC: 30fps (704×480, 704×240, 640×480, 352×240)

Third Stream

PAL: 25fps(1280x720, 704x576, 704x288, 640×360, 352x288) NTSC: 30fps(1280x720, 704x480, 704x240, 640×360, 352x240)

Image Setting

Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Image Enhancement

BLC/3D DNR/HLC/Corridor Format

ROI

Support 8 fixed regions of coding

OSD

16×16, 24×24, 32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions

Picture Overlay

Yes

Privacy Mask

Yes, 8 regions

Smart Defog

Yes

Feature

Alarm Trigger

Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception

Video Analytics

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Safety Helmet Detection, Human/Vehicle Classification

Early Warning(EW)

N/A

Network

ANR

N/A

Protocols

TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP, NFS

System Compatibility

ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P

Remote Connection

≤7

Client

Easy7, EasyLive

Web Version

Web6

Interface

Communication Interface

1 RJ45 10M/ 100M self adaptive Ethernet port,  1 RS485

Audio

1/1, Mic in

Alarm

2/1

Reset Button

Yes

On-board storage

Built-in Micro SD card slot, up to 512 GB

General

Firmware Version

-

Web Client Language

15 languages

English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese

Operating Conditions

-35℃~65℃, 0~95% RH

Power Supply

DC12V±25%/PoE

Power Consumption

MAX: 7.5W (12V) MAX: 9W (PoE)

Protection

IP67, IK10,  Lightning protection, surge protection and voltage transient protection meets EN 55035:2017

Heater

N/A

Dimensions

 Φ143×124mm (Φ5.63×4.88inch)

Weight

0.95Kg (2.09lb)
