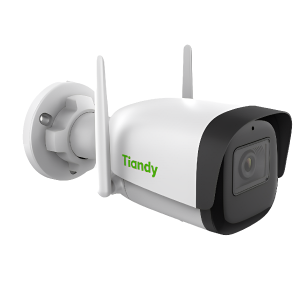

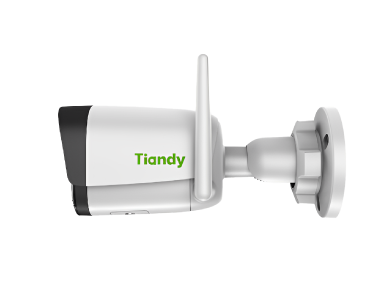

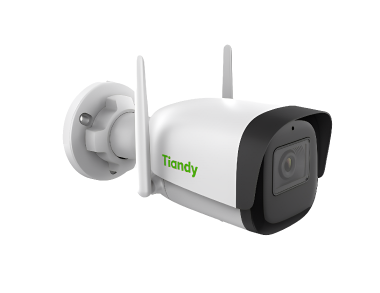

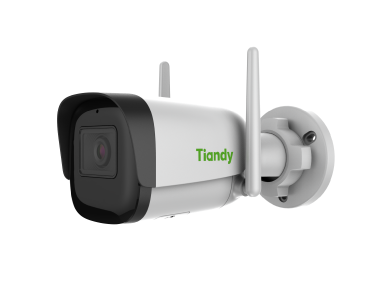

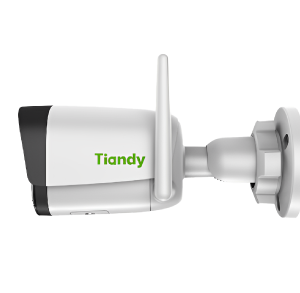

2MP Fixed IR Wi-Fi Bullet Camera

Tiandy
TC-C32WN
Spec: I5/Y/WIFI/4mm/V4.0
__________________________________
Up to 1920x1080@30fps
· 0.02Lux@F2.0
· Smart IR, IR Range: 50m
· Built-in Mic, SD Card Slot, Reset Button
· Support Wi-Fi

· Metal+Plastic Housing

· Up to 1920x1080@30fps

· S+265/H.265/H.264

· Min. illumination Color: 0.02Lux@F2.0

· Smart IR, IR Range: 50m

· Operating Conditions -35℃~65°C, 0~95% RH

· Built-in Mic, SD Card Slot, Reset Button

· Support Wi-Fi

· IP67




Camera

Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.02Lux@ (F2.0, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range Digital WDR
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, roate 0~360°

Lens

Lens Type Fixed
Focus 4mm
Lens Mount M12
Aperture F2.0, Fixed
FOV Horizontal field of view: 83.3°
Vertical field of view: 46.8°

Illuminator

IR LEDs 2
IR Range Up to 50m
Wavelength 850nm
White LEDs N/A

Compression Standard

Video Compression S+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps


Max. Resolution 1920x1080
Main Stream PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480)
NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)
Sub Stream PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream N/A
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI N/A
OSD 16×16, 32×32, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Picture Overlay N/A
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature

Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict, Tripwire, Perimeter
Video Analytics N/A
Early Warning(EW) N/A

Network

Network Storage N/A
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP
System Compatibility ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G)
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web5

Wi-Fi

Wireless Standards IEEE802.11b/g/n
Frequency Range 2.4GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz
Protocols 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security WPA-PSK/WPA2-PSK
Transfer Rates 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Wireless Range Up to 50 m (The performance varies based on actual environment)
Power Consumption 802.11b: 17±1.5dBm@11Mbps
802.11g: 14±1.5dBm@54Mbps
802.11n: 12.5±1.5dBm@150Mbps

Interface

Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Reset Button Yes
On-board storage  Built-in MicroSD card slot, up to 512 GB

General

Firmware Version -
Web Client Language 15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -35℃~65℃, 0~95% RH
Power Supply DC 12V±25%
Power Consumption MAX: 6.8W (12V)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions 161mm×68mm×66mm (6.34×2.68×2.60 inch)
Weight 0.31Kg (0.68lb)
