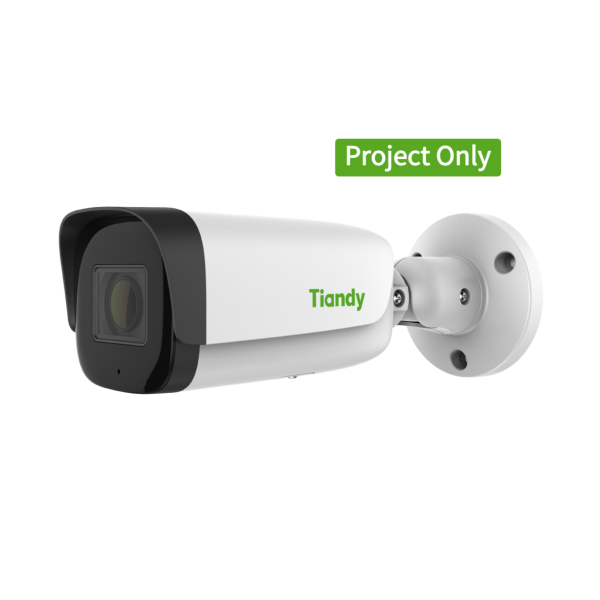

5MP Motorized Starlight IR Bullet Camera

Tiandy
TC-C35US
Spec: I8/A/E/Y/M/2.8-12mm/V4.0
__________________________________
· Full Metal Housing
· Motorized Lens 2.8-12mm
· Up to 2592x1944@20fps
· S+265/H.265/H.264
·PoE, IP67, IK10

· Full Metal Housing

· Motorized Lens 2.8-12mm

· Up to 2592x1944@20fps

· S+265/H.265/H.264

· Min. illumination Color: 0.002Lux@F1.6

· 120dB WDR

· Smart IR, IR Range: 80m

· Support tripwire and perimeter

· Built-in Mic, SD Card Slot, Reset Button

· Operating Conditions -40℃~60℃, 0~95% RH

· PoE, IP67, IK10




Camera

Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, roate 0~360°

Lens

Lens Type Motorized
Focus 2.8-12mm
Lens Mount Φ14
Aperture F1.6~F3.3, Fixed
FOV Horizontal field of view: 96.8°~32.7°

Illuminator

IR LEDs 4
IR Range Up to 80m
Wavelength 850nm
White LEDs/Warmlights N/A

Compression Standard

Video Compression S+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps


Max. Resolution 2592x1944
Main Stream PAL: 20fps (2592×1944, 2592×1520), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 20fps (2592×1944, 2592×1520,), 25fps ( 2560×1440), 30fps (2304×1296, 1920×1080,1280×720)
Sub Stream PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream N/A
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI N/A
OSD 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Picture Overlay N/A
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature

Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics Tripwire, Perimeter
Early Warning(EW) N/A

Network

ANR Yes(Only Support Tiandy ANR NVR)
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP
System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G)
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web5

Interface

Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Reset Button Yes
On-board storage  Built-in MicroSD card slot, up to 512 GB

General

Firmware Version -
Web Client Language 15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -40℃~60℃, 0~95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 9W (12V) MAX: 10W (PoE)
Protection IP67,IK10,Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions 239×90×90mm (9.41×3.54×3.54inch)
Weight 0.9Kg (1.98lb)
