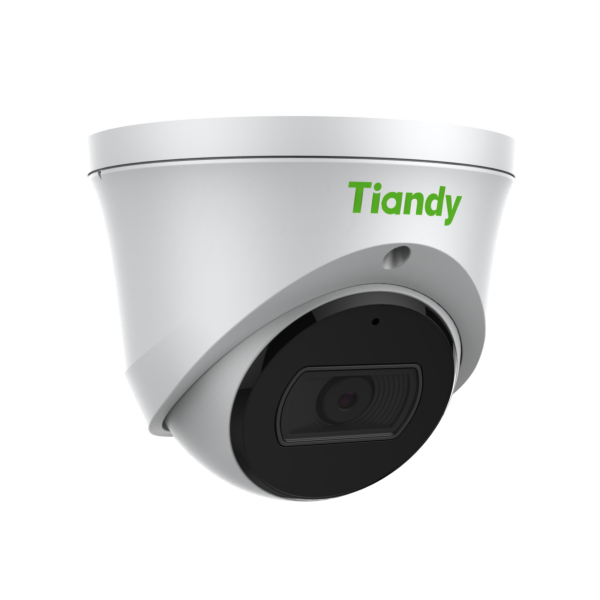

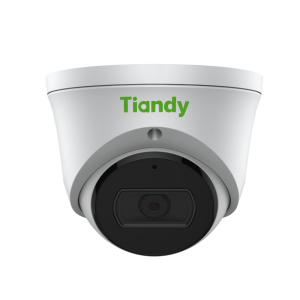

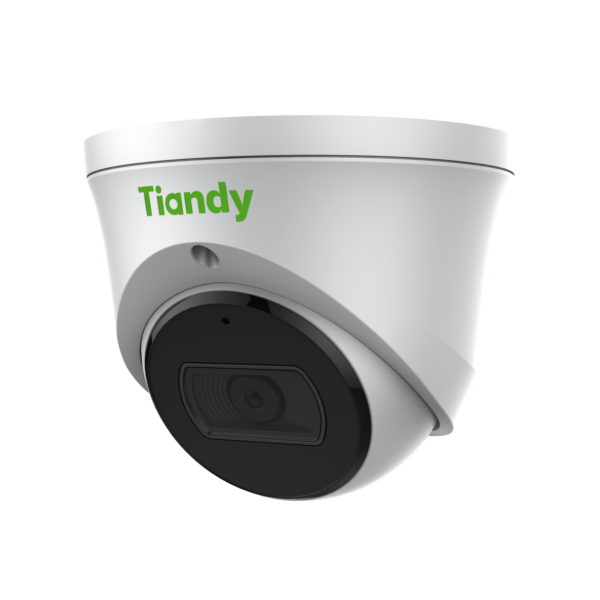

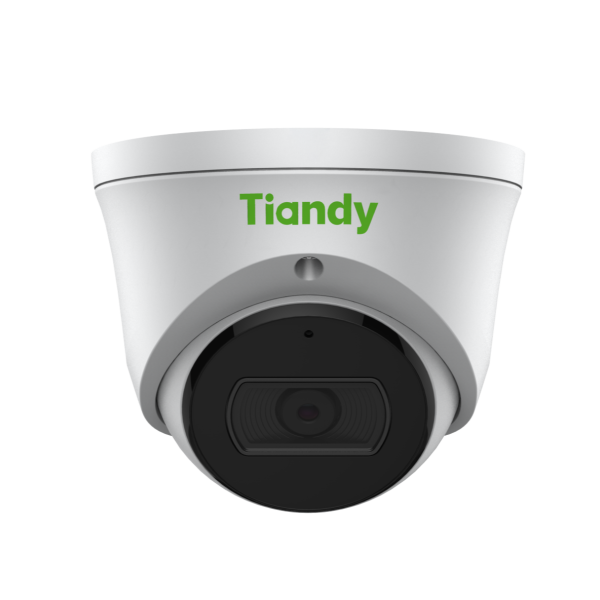

8MP Fixed Starlight IR Turret Camera

Tiandy
TC-C38XS
Spec: I3/E/Y/M/2.8mm/V4.0
__________________________________
· Full Metal Housing
· Up to 3840x2160@20fps
· S+265/H.265/H.264
· Min. illumination Color: 0.003Lux@F1.6

· Full Metal Housing

· Up to 3840x2160@20fps

· S+265/H.265/H.264

· Min. illumination Color: 0.003Lux@F1.6

· 120dB WDR

· Smart IR, IR Range: 30m

· Support tripwire and perimeter

· Built-in Mic, SD Card Slot, Reset Button

· Operating Conditions -40℃~65℃, 0~95% RH

· POE, IP67




Camera

Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.003Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~340°, tilt 0~75°, roate 0~360°

Lens

Lens Type Fixed
Focus 2.8mm
Lens Mount M12
Aperture F1.6, Fixed
FOV Horizontal field of view: 100.1°

Illuminator

IR LEDs 2
IR Range Up to 30m
Wavelength 850nm
White LEDs/Warmlights N/A

Compression Standard

Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps


Max. Resolution 3840x2160
Main Stream PAL: 20fps (3840×2160, 3072×2048), 25fps ( 2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 20fps (3840×2160,3072×2048), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream

PAL:25fps(704×576, 704×288, 640×360, 352×288)

NTSC:30fps(704×480, 704×240, 640×480, 352×240)

Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed region of coding
OSD 16×16, 32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
Picture Overlay Y
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature

Alarm Trigger Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Voltage Abnormal
Video Analytics Tripwire, Perimeter
Early Warning(EW) N/A

Network

ANR Yes(Only Support Tiandy ANR NVR)
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, RTMP, SFTP, NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI, P2P(Mutually exclusive with Profile G)
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web6

Interface

Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Reset Button Yes
On-board storage  Built-in MicroSD card slot, up to 512 GB

General

Firmware Version -
Web Client Language 15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -40℃~65℃, 0~95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 7W (12V) MAX: 8W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions Φ116.6×83.7mm (Φ4.59×3.30inch)
Weight 0.4Kg (0.88lb)
