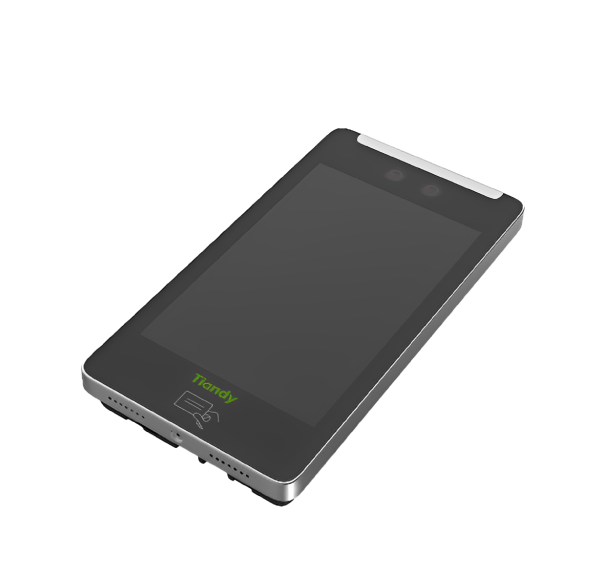

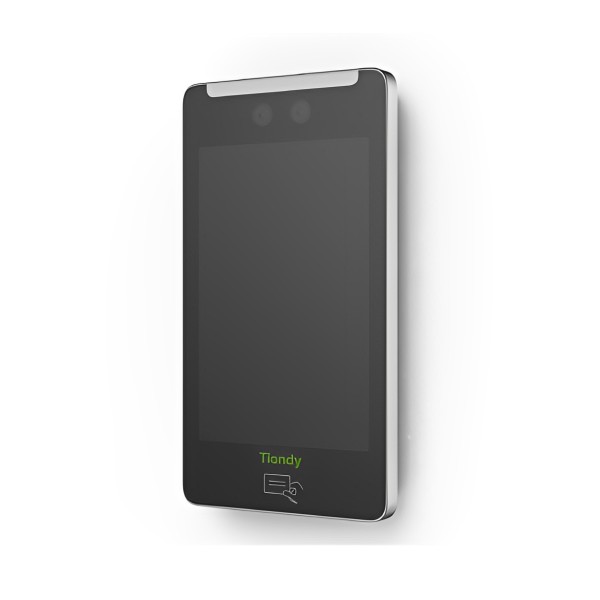

Face Recognition Terminal

Tiandy
TC-P3010
__________________________________
· Wall mounting
· 8-inch LCD touch screen
· 2MP wide-angle lens
· WDR
· Face recognition distance:0.3m to 2.0m

· Wall mounting

· 8-inch LCD touch screen to display operation interface, advertisement, etc.

· 2MP wide-angle lens

· WDR

· Face recognition distance:0.3m to 2.0m

· High performance processor with deep learning algorithm

· Max.10000 face pictures and Max. 50000 cards

· Multiple authentication modes: authentication by comparing face picture, by swiping card and comparing face picture, by custom mode, etc.

· Accurate and fast face recognition function.

· The face recognition duration is no more than 0.3s per person and the face recognition accuracy rate is more than 99%

· Applies face picture data and card data to the device via TCP/IP or uploading them to the device via the USB flash drive

· Stand-alone operation

· Transmits and saves the comparing results and the captured face pictures to the server or saved localy

· Device management, log search, and parameter settings via the device GUI or IE client

· Imports the data (face pictures) from the USB flash drive to the device or exports the data (face pictures and events) from the device to the USB flash drive

· Voice prompts




Main Functions

Operation System Embedded Linux System
LCD Screen 8-inch LCD Touch Screen
Resolution: 1280×800
Camera 2MP, true WDR, Wide-Angle Lens
1:N Face Recognition Duration ≤ 0.3s/Person
Face Recognition Accuracy Rate ≥ 99%
Face Recognition Distance 0.3 m to 2 m
Face Picture Capacity 10000, JPG
Card Capacity 50,000
Event Capacity 100,000
Communication Mode 10/100 Mbps Self-Adaptive Network Interface
Interface RS-485×1, Wiegand×1, USB×1, Sensor×1, Exit Button×1, Tamper×1, Alarm Input×2, Alarm Output×1, Door Lock×1
Power Supply 12 VDC/2 A (Centralized Power Supply)
Working Temperature  -20 °C to  60 °C
Working Humidity 0% to 90% RH

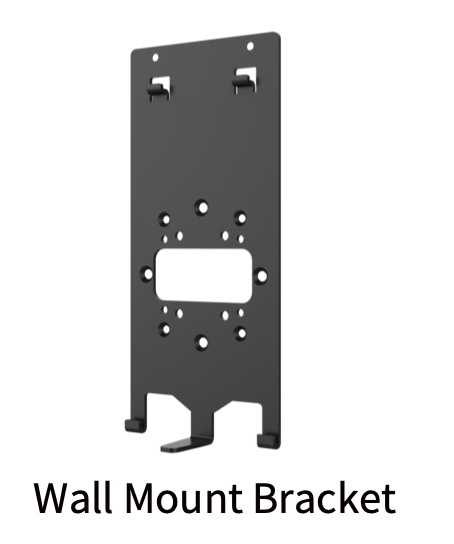

Installing Method Wall Mounting (With/Without Gang Bracket)

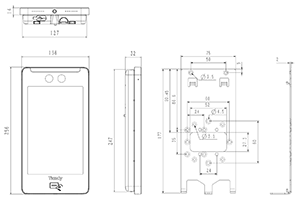

Dimensions  240×132×33mm (9.45×5.20×1.30inch)
Application Situation Indoor/Outdoor
Protection Level IP65
Power Consumption ≤14W
