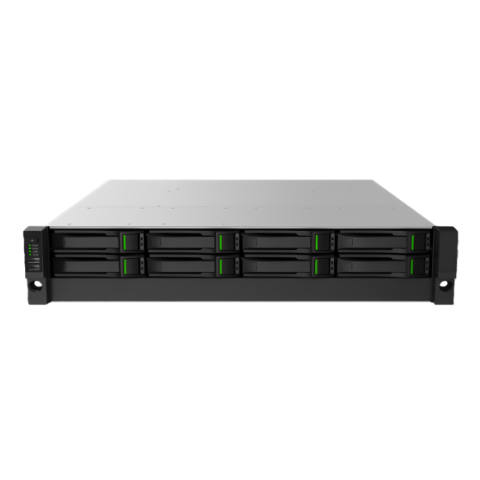

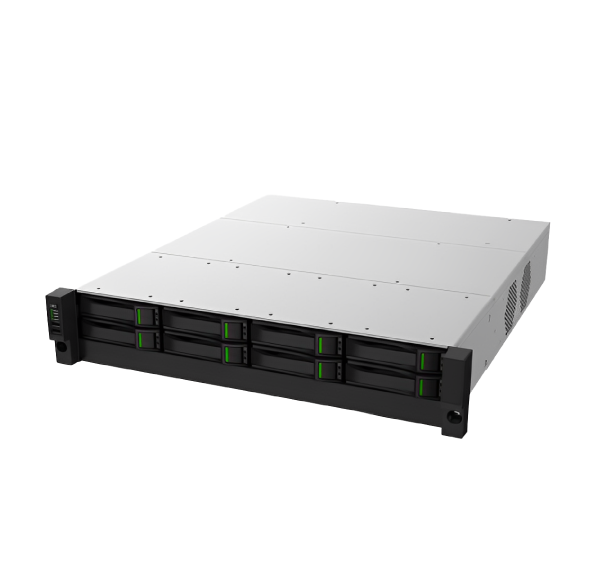

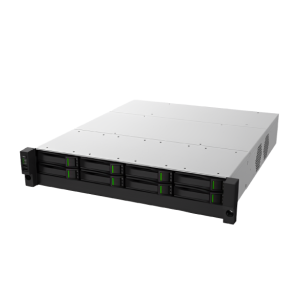

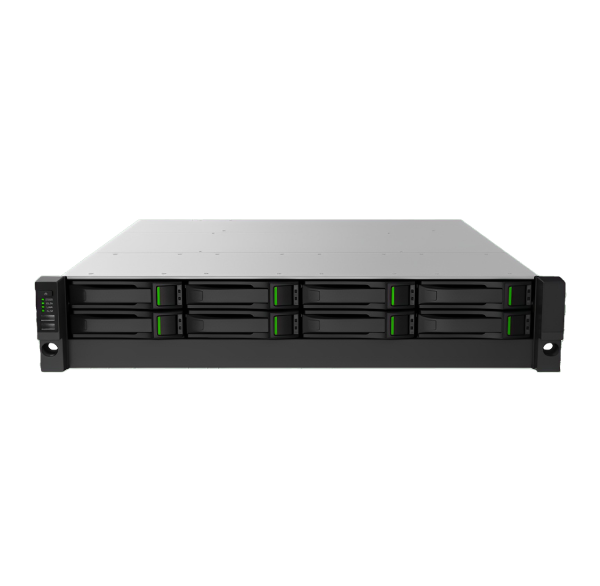

K1000 All-in-one Video Management Server

Tiandy
TC-S3608
Spec: T/2U
__________________________________
· Up to 8 HDDs, 1000 channels
· 16 1080P decoding
· Video input/output 400M
· Recording/forwarding channel 200

The K1000 is an all-in-one server that combines Tiandy's powerful video central management system, Easy7 CMS, with stream service and storage service. The K1000 can manage network cameras for recording, live view, playback, E-map, video wall etc,. With the power of VMS, sophisticated alarm management is possible, as well as central management. The K1000's unique design provides both powerful storage and advanced centralized video management capabilities.

· 2U front panel HDD slots design, support up to 8 HDDs

· Support centralized storage, decoding, forwarding and management of IP cameras, stream servers, NVRs and decoders, up to

1000 channels

· Support 2 HDMI & 1VGA output interfaces and 16 1080P decoding

· Linux OS embedded operating system

· Support web management UI

· Video input bandwidth 400M, output bandwidth 400M;

 Video recording channel 200/ Forwarding channel 200 ( Disable face recognition)

· Support local video storage

· Support NTP function

· Support RAID 0/1/5/6/10/50/60

· Able to operate the configuration and monitor the status of disk and RAID group by adopting visible management UI

· Able to conduct human, vehicle, attendance, device and access control

· Able to conduct face search

· Able to conduct early warning linkage




Main Functions

Device management Support management of IP cameras, NVRs and network video encoder/decoders
Support configuration of device information and account authority
Support detection of device status
Live view Support auto switch of main and sub stream, live windows can be drag to form a large single window. Live windows can be divided into 4/6/8/10 mode or 1-5/1-7 consist of main/sub stream. The number of screens per row/column can be customized up to 64 as well. Supports electronic zoom, image capture. Supports switch by single channel, group or all channels, users can customize switch plan
PTZ control Support pan tilt and zoom control including 8 directions control, zoom/aperture/focus settings, preset settings, wiper control and 3D positioning
Video management Support recording template that users can easily arrange start time, end time, week time and recording duration
Video playback Support device storage/centralized storage/local storage and multiple method for searching video
Support timing video recording, playback, video download, image capture, multi-speed playback in server
Video wall Support video wall template configuration and video switch
Event management Support multiple alarm types and linkage of alarm input and output interfaces. Events can be prioritized by importance
Intelligent analysis Support linkage of VCA functions
Alarm linkage Support linkage of alarm output, video recording, sound, pop on video wall, e-map, image capture and preset of PTZ
User management Support user account management like setting authority and expiration time
Log management Support recording log like adding, deleting and modifying for each module independently
Support searching and exporting log information for each module
E-map Support using super high-resolution picture as e-map background
Support google GIS map and different surveillance icons overlay on maps
Two-way audio Support two-way audio to devices and volume is adjustable
Decoding Support 2 HDMI& 1VGA output interfaces and 16 1080P decoding
Compatible devices Support access of IP cameras, NVRs, centralized storage and servers.
Support 150 channels access via ONVIF protocal and 500 channels via Tiandy private protocal.
Support 1000 channels via Tiandy private protocal only.
Group management Support adding, modifying, searching and deleting the organization structure and offical authority
Face management Support up to 50 face recognition cameras connection
Support up to 5000 face pictures each library
Support analysis and statistics of face alarm
Support to search picture by picture and search face picture by time or name

Specifications

CPU 64-bit multicore processor
Memory 24GB (3×8GB, 4 memory slots), maximum 64G
OS HDD 32G SSD
Network interface 4xRJ45 self-adaptive 10/100/1000 Mbps network interfaces
Data HDD Up to 8 disks
HDD type 2.5" or 3.5" SATA
HDD capacity 4/6/8TB enterprise HDD
4/6/8/10TB surveillance HDD
Interfaces 2 USB 2.0 ports in front panel, 2 USB 3.0 ports in rare panel
2 HDMI, 1 VGA
2 RS485, 1 RS232
8 alarm input, 4 alarm output
RAID RAID 0/1/5/6/10/50/60

General

Power supply AC200V~AC240V, 50Hz
Power consumption Rated power: 350W
Peak power: 200W
Average power: 180W
Working temperature 5℃~40℃
Working humidity 10%~90%(RH)
Dimensions 535mm(L)×446mm(W)×88.5mm(H)

Software

Management platform WEB GUI
Management software IPC access management, Recording file management, Alarm linkage
IPC channels  1000
User account 100
Middleware adapter 1
Middleware number 1(Default)
Icon overlay on map 1000
Person information 10000
Face recognition camera access Maximum Maximum 50
ANPR camera access Maximum Maximum 25
Access control PAD (ID card) Maximum Maximum 70
Face turnstile Maximum Maximum 24
Log record 500,000 per 90 days 500,000 per 90 days
Alarm record 5,000,000 per 90 days 5,000,000 per 90 days
Face Pad record 3,000,000 per 90 days 3,000,000 per 90 days
Face capture record 2,000,000 per 90 days
Attendace record(1000 people) 365,000 per year

Dynamic Statistics
* The following listed numbers are peak performance, they may not be supported at the same time

GPS location reported 10/S
Access users 50
Online users 100
Access APP 100
Alarm go off per second 8
Picture performance Send/Receive 25 pictures/S
Less than 550K each picture, up to 18,000 pictures every day

Video performance (Picture and video storage in same time)

Video storage capability Up to 180 channels (2Mbs, H.265)
Video forwarding capability Up to 180 channels forwarding and decoding combined (2Mbs, H.265)
Decoding capability Up to 16 channels in main stream (1080P, 2Mbs, H.265)
Video switching Up to 16 channels in main stream (1080P, 2Mbs, H.265)

Video performance (Video storage only)

Video storage capability Up to 200 channels (2Mbs, H.265)
Video forwarding capability Up to 200 channels forwarding and decoding combined (2Mbs, H.265)
Decoding capability Up to 16 channels in main stream (1080P 2Mbs H265)
Video switching Up to 16 channels in main stream (1080P 2Mbs H265)
