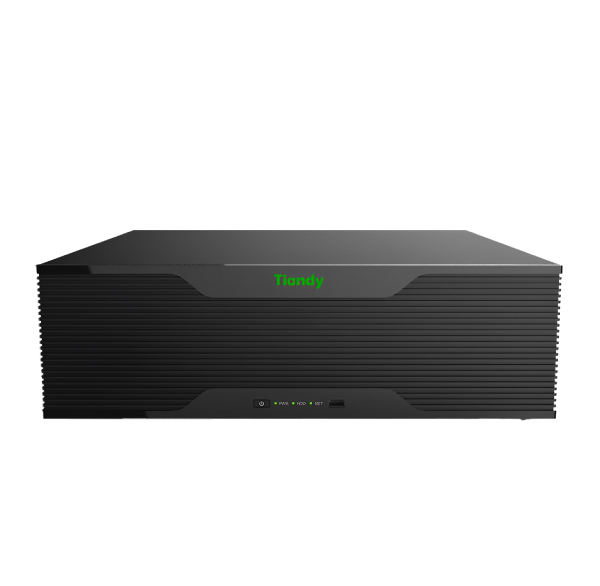

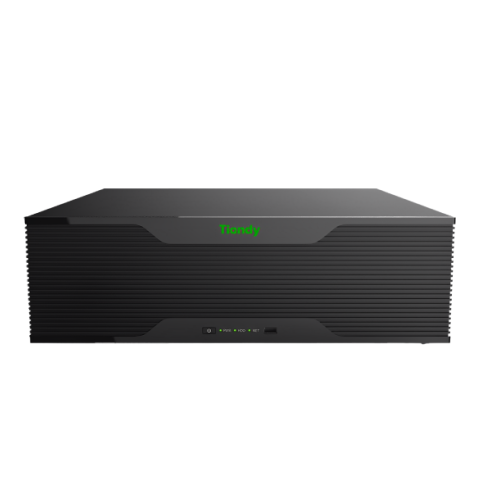

16ch HD Decoding Controller
TC-N3416A
__________________________________
· Up to 4K (3840 × 2160@30Hz) via HDMI output interfaces (only for 1,5,9,13 interface).
· Up to 16-ch decoding at 8 MP resolution
__________________________________
· Up to 4K (3840 × 2160@30Hz) via HDMI output interfaces (only for 1,5,9,13 interface).
· Up to 16-ch decoding at 8 MP resolution
محصولات مرتبط
-
Up to 4K (3840 × 2160@30Hz) via HDMI output interfaces (only for 1,5,9,13 interface).
· Up to 16-ch decoding at 8 MP resolution
· S+265,H.265,H.264 and MPEG4 video compression
· G.711A,G.711U,AAC and ADPCM audio compression
· Supports window opening and window roaming
· Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding
|
Main Functions |
|
| Video/Audio input | 2 DVI-I & 2 HDMI |
| Input resolution | 3840×2160@30fps |
| 1920×1080@60fpsfps | |
| 1440×900@60fps | |
| 1366×768@60fps | |
| 1280×1024@60fps | |
| 1280×960@60fps | |
| 1280×800@60fps | |
| 1280×720@60fps | |
| 1024×768@60fps | |
| 800×600@60fps | |
| HDMI output | 16-ch |
| 3840×2160@30(only for 1,5,9,13 interface) | |
| 1920×1080@60fps | |
| 1280×720@60fps | |
| 1280×800@60fps | |
| 1440×900@60fps | |
| 1280×1024@60fps | |
| 1366×768@60fps | |
| 1024×768@60fps | |
| 800×600@60fps | |
| Decoding resolution | Up to 12MP |
| Decoding channel | 256-ch |
| Decoding capability | 12MP@25fps: 12-ch |
| 8MP@25fps: 16-ch | |
| 6MP@25fps: 24-ch | |
| 5MP@25fps: 32-ch | |
| 4MP@25fps: 36-ch | |
| 3MP@25fps: 48-ch | |
| 1080P@30fps: 64-ch | |
| 720P@30fps: 144-ch | |
| 960H@30fps: 192-ch | |
| D1@30fps: 256-ch | |
| 1080P@60fpsfps: 32-ch | |
| Split screen | 1×1, 1×2, 1×3, 2×1: 1/2/3/4/6/8/9/10/13/16 1×4, 1×5, 1×6, 1×7, 1×8, 2×2, 2×3, 2×4, 3×2, 3×3, 4×2: 1/2/3/4/6/8/9/10/13/16/20/25/36 2×5, 2×6, 2×7, 2×8, 3×4, 3×5, 4×3, 5×2, 5×3: 1/2/3/4/6/8/9/10/13/16/20/25/36/40/64/81 4×4: 1/2/3/4/6/8/9/10/13/16/20/25/36/40/64/81/100 |
| Decoding format | Tiandy encapsulation format, ONVIF, RTSP |
| Decoding bandwidth | 400Mbps |
| Network interface | 2, 10/100/1000 Mbps self-adaptive management network interface |
| Serial interface | 2×RS-232 (1×RJ45), 2×RS-485 |
| USB interface | 1×USB 3.0, 2×USB 2.0 |
| Audio input | 1-ch, 3.5 mm connector |
| Audio output | 1-ch, 3.5 mm connector |
| Alarm input | 8 |
| Alarm output | 8 |
| Power supply | AC220V |
| Power consumption | ≤73W |
| Redundant power supply | Support |
| Reset button | Support |
| Working temperature | -10℃～55℃ |
| Working humidity | 10%~90% RH |
| Dimensions | 441×404×144mm, (17.36×15.91×5.67 inch) |
| Weight | 8.2kg (18.07lb) |
