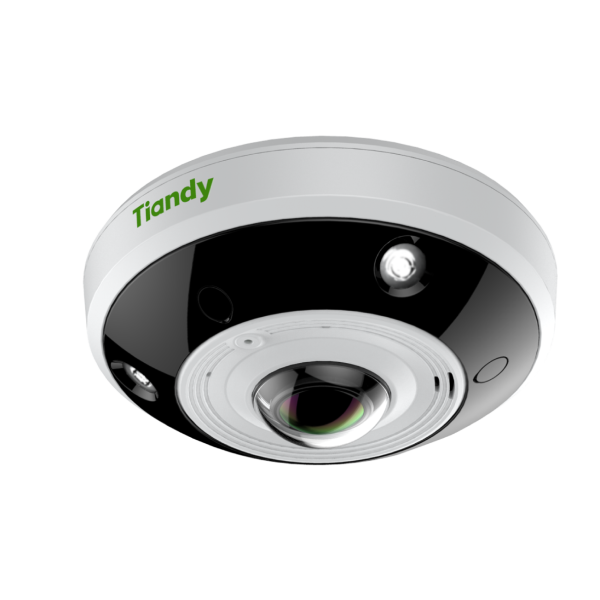

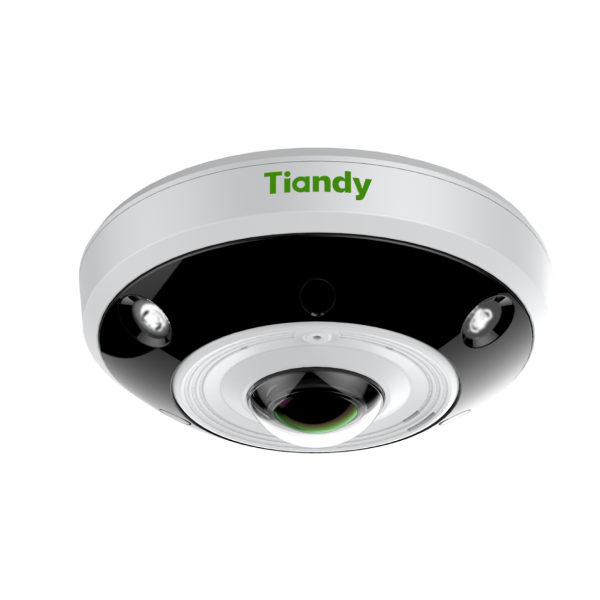

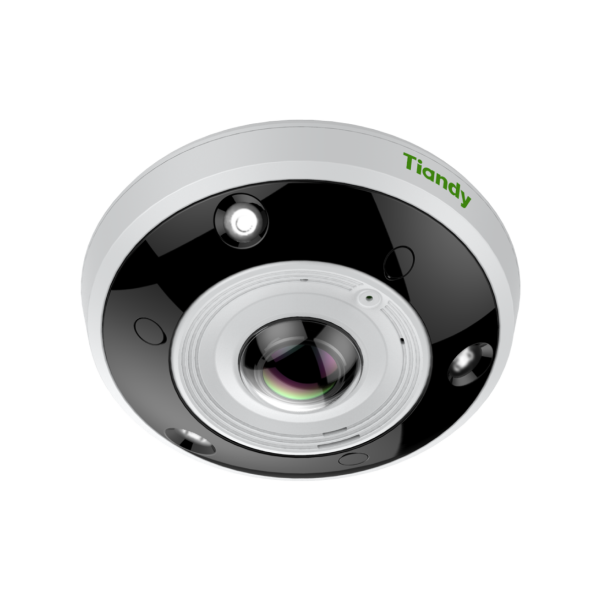

12MP IR Fisheye Camera
TC-NC1261
__________________________________
•H.265 compression
•Up to 12MP@20fps
•Min. Illumination : 0.05 Lux
•Smart IR, IR Range: 20m
__________________________________
•H.265 compression
•Up to 12MP@20fps
•Min. Illumination : 0.05 Lux
•Smart IR, IR Range: 20m
محصولات مرتبط
-
· Up to 4000×3072@20fps
· S+265/H.265/H.264/M-JPEG
· Support Ceiling, Wall, Table Mounting
· Support Hardware Decoding and Software Decoding
· Support 360° Panaromic View, 180° Panaromic View, 4PTZ, Fisheye+3PTZ Mode
· Support Human/Vehicle Classification
· Built-in Mic&Speaker
· Smart IR, IR Range: 20m
· Operating Conditions -35°~65°, 0~95% RHG
· PoE, IP66, IK10
|
Camera |
|
| Image Sensor | 1/1.7" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.05Lux@ (F2.8, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | Digital WDR |
|
Lens |
|
| Lens Type | Fixed |
| Focus | 1.98mm |
| Lens Mount | M12 |
| Aperture | F2.8, Fixed |
| FOV | Horizontal field of view: 180° |
|
Illuminator |
|
| IR LEDs | 3 |
| IR Range | Up to 20m |
| Wavelength | 850nm |
| White LEDs | 3 |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | 8K~48Kbps |
|
Image |
|
| Max. Resolution | 4000×3072 |
| Main Stream | PAL: 20fps (4000×3072), 25fps (3072×3072, 2560×2560), 20fps (720×720, 704×576) |
| NTSC: 20fps (4000×3072), 30fps (3072×3072, 2560×2560), 20fps (720×720, 704×480) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 352×288) |
| NTSC: 30fps (704×480，704×240，352×240) | |
| Third Stream | N/A |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | Support 7 fixed region of coding |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes |
| Smart Defog | Yes |
|
Feature |
|
| Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Video Abnormal, Audio Abnormal, Heat Map |
| Early Warning(EW) | Yes |
| Smart Codec | N/A |
| Smart Image | N/A |
| Smart Alarm | N/A |
|
Network |
|
| ANR | N/A |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, PPPoE |
| System Compatibility | ONVIF (PROFILE S), SDK, CGI, P2P |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web5 |
|
Interface |
|
| Communication Interface | 1 RJ45 10M/100M/1000M self adaptive Ethernet port |
| Audio | 1/2, Mic in |
| Alarm | 2/1 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 128 GB |
|
General |
|
| Firmware Version | NVSS_V9.1.0.20170206 |
| Web Client Language | 11 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC12V±10%/AC24V±25%/PoE |
| Power Consumption | 8.6W/11.7W(MAX) |
| Protection | IP66, IK10 |
| Heater | N/A |
| Dimensions | Φ155×54 mm (Φ6.1*2.13 inch) |
| Weight | 0.75kg (1.65lb) |
