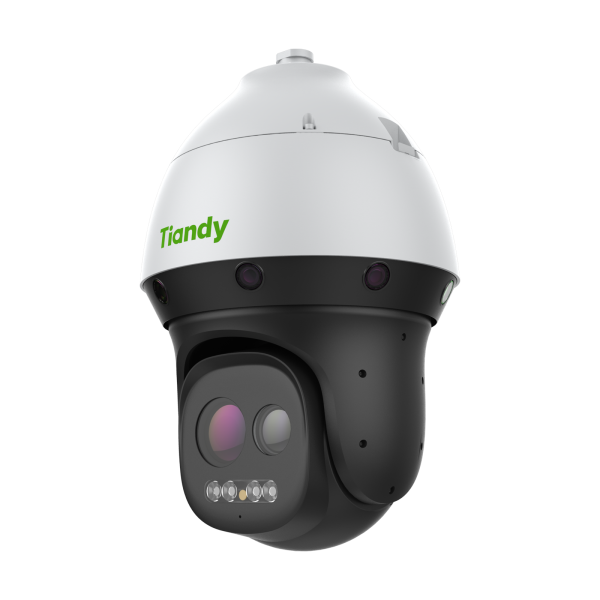

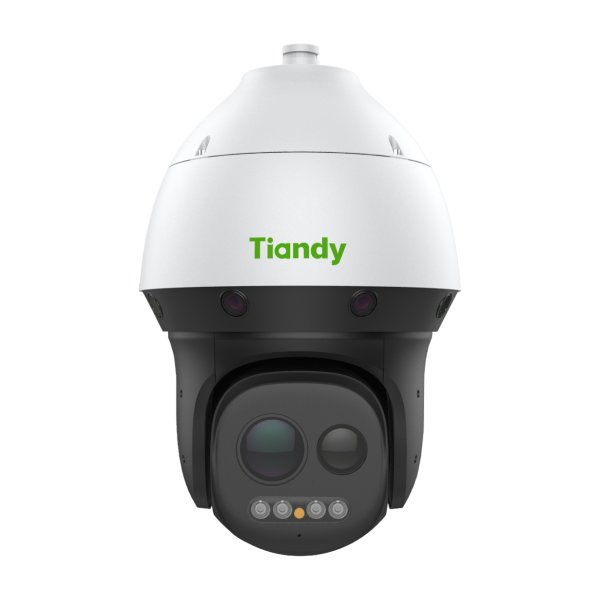

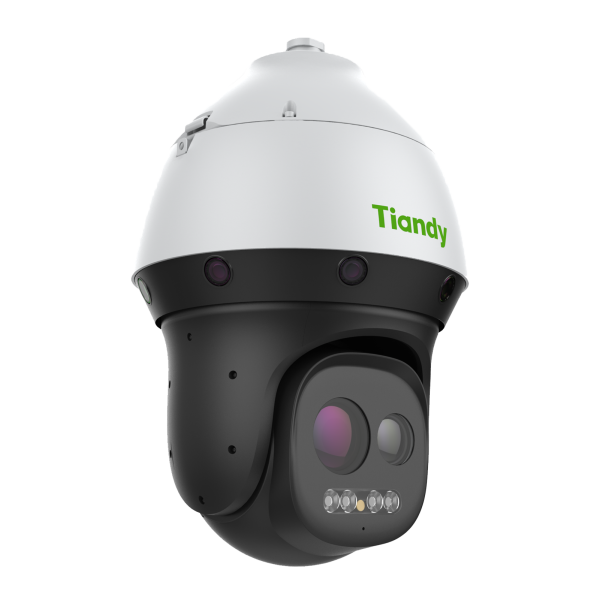

8MP 44x Super Starlight Laser AEW Panoramic PTZ Camera
TC-H389M
Spec: 44X/LW/P/A
__________________________________
· AEW
· Up to 1920×1080@60fps
· 0.0008Lux@F1.5
· 44×, 16×
· Four 1/1.8" CMOS
· Horizontal: 180°, Verticle: 74°
Spec: 44X/LW/P/A
__________________________________
· AEW
· Up to 1920×1080@60fps
· 0.0008Lux@F1.5
· 44×, 16×
· Four 1/1.8" CMOS
· Horizontal: 180°, Verticle: 74°
محصولات مرتبط
-
PTZ Camera:
·Auto-Tracking Early Warning (AEW)
·Up to 1920×1080@60fps
·Min. illumination Color: 0.0008Lux@F1.5
·Optical zoom: 44×, digital zoom 16×
·Support Laser Point
Panaromic Camera:
·Four 1/1.8" CMOS
·Up to 4096×1800@30fps
·Horizontal: 180°, Verticle: 74°
·Built-in Speaker
·S+265/H.265/H.264/M-JPEG
·IP66, POE
|
PTZ Camera |
|
| Image Sensor | 1/1.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.0008Lux@ (F1.5, AGC ON) |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter |
| Wide Dynamic Range | 140dB |
| Focal Length | 6mm～264mm, 44× optical lens |
| Digital Zoom | 16× |
| Zoom Speed | <5s |
| Angle of View | Horizontal filed of view: 61.2° (w)～2° (t) |
| Aperture Range | F1.5~F4.8 |
| Pan Range | 360° |
| Pan Speed | Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 200°/s |
| Tilt Range | -16°~90° (Auto flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s |
| 3D Position | Yes |
| Presets | 500 |
| Preset Accuracy | ±0.3° |
| Scan | 8 |
| Cruise | 16, up to 32 presets per cruise |
| Pattern | 8, each with 600s memory or 1000 orders |
| Power-off Memory | Yes |
| RS-485 Protocols | DOME_PELCO_D, DOME_PELCO_P, DOME_PLUS |
| Max. Resolution | 1920×1080 |
| Main Stream | PAL: 50fps (1920×1080, 1280×960, 1280×720) |
| NTSC: 60fps (1920×1080, 1280×960, 1280×720) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 352×288) |
| NTSC: 30fps (704×480, 704×240, 352×240) | |
| Third stream | PAL: 25fps (1920×1080, 1280×960, 1280×720, 640×480, 704×576, 352×288) |
| NTSC: 30fps (1920×1080, 1280×960, 1280×720, 640×480, 704×480, 352×240) | |
|
Panaromic Camera |
|
| Image Sensor | Four 1/1.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.01Lux@ (F2.2, ACG ON) |
| Shutter Time | 1s to 1/100,000s |
| Focal Length | 5mm |
| Aperture | F2.2 |
| Angle of View | Horizontal: 180°, Verticle: 74° |
| Max. Resolution | 4096×1800 |
| Main Stream | PAL: 25fps (4096×1800, 3840×1680, 2720×1192) |
| NTSC: 30fps (4096×1800, 3840×1680, 2720×1192) | |
| Sub Stream | PAL: 25fps (704×320) |
| NTSC: 30fps (704×320) | |
| Third Stream | PAL: 25fps (1280×560) NTSC: 30fps (1280×560) |
|
Illuminator |
|
| IR LEDs | N/A |
| IR Range | N/A |
| White LEDs | 4 |
| Laser | Yes |
| Laser Distance | 500m |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | 8K~48Kbps |
|
Feature |
|
| Alarm Trigger | Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Face Detection, People Counting, Crowed, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap |
| Early Warning(EW) | Yes |
| Auto-Tracking | Yes |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream, support auto-tracking ROI |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes |
| Smart Defog | Yes |
|
Network |
|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE |
| System Compatibility | ONVIF (PROFILE S), SDK, CGI |
| ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web5 |
|
Interface |
|
| Communication Interface | 1 RJ45 10M/100M/1000M self adaptive Ethernet port |
| Audio | 1/1 |
| Alarm | 8/2 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 128 GB |
| RS-485 | Yes |
| BNC | Yes |
| Wiper | N/A |
|
General |
|
| Firmware Version | NVSS_V15.2.0.20180828 |
| Web Client Language | 5 languages English, Korean, Turkish, Simple Chinese, Traditional Chinese |
| Operating Conditions | -30°~65°C, 0-95% RH |
| Power Supply | AC24V±15% |
| Power Consumption | 85W (IR OFF), 110W (IR ON ) |
| Protection | IP66 |
| Heater | N/A |
| Dimensions | Φ358x568 mm (Φ14.09×22.36 inch) |
| Weight | 16kg (35.27lb) |
