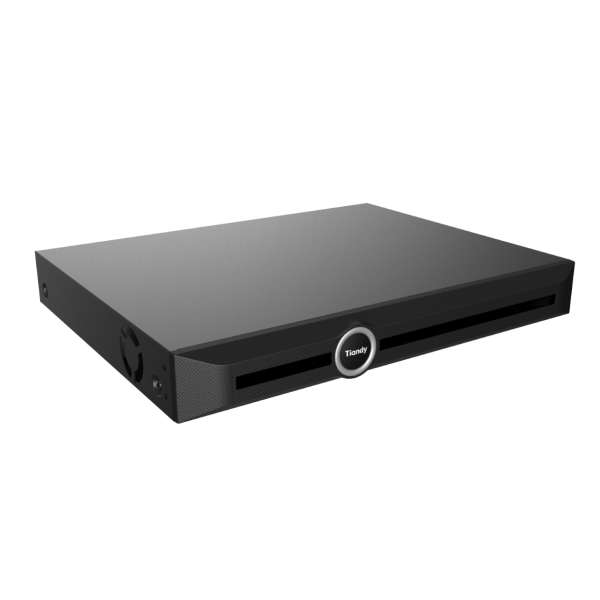

H.265 2HDD 20ch NVR
Spec:I/B/K/V3.0
__________________________________
• S+265 Compression
• Support 20-ch input
• Up to 8MP Resolution Recording
• Incoming Bandwidth 120Mbps
• Outgoing Bandwidth 100Mbps
-
HD Input
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Up to 20-channel input
• Supports live view, storage, and playback of the connected camera at up to 8MP resolution
HD Output
• HDMI and VGA simultaneous output
• HDMI Video output at up to 4K (3840×2160) resolution
HD Storage
• 2 SATA interfaces, up to 10TB for each HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
• 1×RJ45 self-adaptive 10/100/1000 Mbps network interface
Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Smart search for the selected area in the video and smart playback to improve the playback efficiency
• Web6 supports plug-in free browsing and can preview videos on all browsers
• Support cloud upgrade
|
Input |
|
|
Video Input |
20-ch |
|
Max Resolution |
8MP |
|
Two-way Audio Input |
1-ch, 3.5mm |
|
Bandwidth |
Income 120Mbps; Outgoing 100Mbps |
|
Output |
|
|
HDMI/VGA Output |
HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800 ×600, 1024×768, 1366×768, 1440×900, 1280×800 |
|
VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 |
|
|
Screen Split |
1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B |
|
Audio Output |
1×RCA |
|
Decoding |
|
|
Decoding Format |
S+265/H.265/H.264 |
|
Recording Resolution |
8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Preview Capability |
1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P, 20×4CIF |
|
Synchronous Playback |
1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P |
|
Records Encryption |
Yes |
|
Hard Disk |
|
|
SATA |
2 SATA interfaces for 2 HDDs |
|
Capacity |
Up to 10TB for each HDD |
|
eSATA Interface |
N/A |
|
Array Type |
N/A |
|
External Interface |
|
|
Network Interface |
1xRJ45 self-adaptive 10/100/1000 Mbps network interface |
|
USB Interface |
2xUSB 2.0 |
|
Serial Interface |
N/A |
|
Alarm In/Out |
4/1 |
|
Network |
|
|
Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS |
|
System Compatibility |
ONVIF (PROFILE S/T/G), SDK, P2P |
|
General |
|
|
Web Version |
Web6 |
|
Language |
Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic |
|
Operating Conditions |
-10℃～55℃, 10%~90% RH |
|
Power Supply |
DC12V 3.33A |
|
Consumption (without HDD) |
≤10W (without HDD) |
|
Chassis |
1U |
|
Dimensions |
47.1×272.6×341mm, (1.85×10.73×13.43 inch) |
|
Weight (without HDD) |
1.6Kg (3.53lb) |
