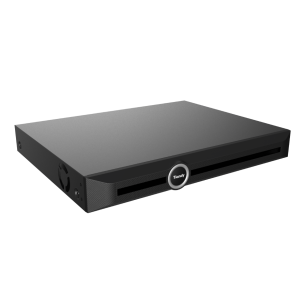

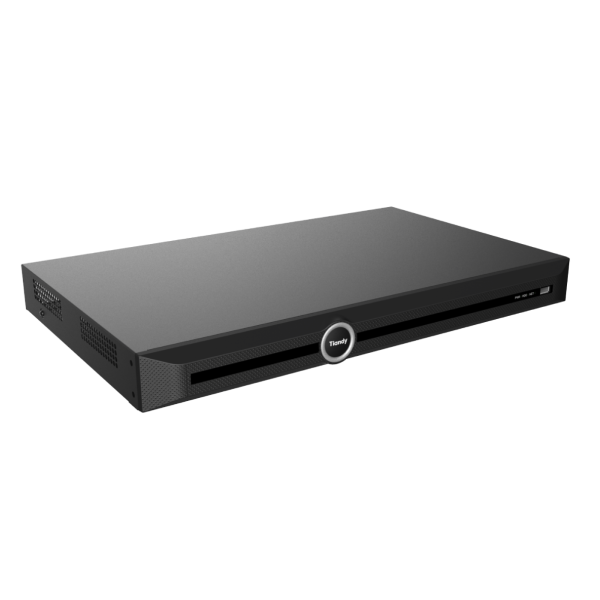

H.265 2HDD 20ch Enhanced PSE NVR

Tiandy
TC-R3220
Spec: I/B/P/H
__________________________________
• Up to 20-channel input
• 16 PoE ports
• Up to 12MP Resolution Recording
• Incoming Bandwidth 200Mbps
• Outgoing Bandwidth 200Mbps

HD Input

• Plug and play

• S+265/H.265/H.264 video formats

• Connectable to third-party network cameras

• Up to 20 IP cameras can be connected

• 16 PoE ports

• Supports live view, storage and playback of connected camera at up to 12MP resolution

HD Output

• 1×HDMI and 1×VGA simultaneous output

• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 2 SATA interfaces connectable for recording and backup on the front panel

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 1×RJ45 self-adaptive 10/100/1000 Mbps network interfaces

• PoE port: 16xRJ45 self-adaptive 10/100 Mbps network interfaces

Functions

• Centralized management of IP cameras, including configuration, parameter import/export, real-time information display, two-way audio, upgrade, etc.

• Connectable to smart IP cameras from Tiandy, recording, playing back and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to make the playback efficiency

• Web6 supports plug-in free browsing and can preview videos on all browsers

• Support cloud upgrade

• Support 250m long-distance transmission




Input

Video Input

20-ch

Max Resolution

12MP

Two-way Audio Input

1-ch, 3.5mm

Bandwidth

Income 200Mbps; Outgoing 200Mbps

Output

HDMI/VGA Output

HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1440×900, 1366×768, 1280×800,1280×720,1024×768,  800×600

VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768, 800×600

Screen Split

1/3/4/6/8/9/10/13/16/20A/20B

Audio Output

1×RCA

Decoding

Decoding Format

S+265/H.265/H.264

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Capability

3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 20×720P, 20×4CIF

Synchronous Playback

3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P,16×720P

Records Encryption

Yes

Hard Disk

SATA

2 SATA interfaces for 2 HDDs

Capacity

Up to 10TB for each HDD

eSATA Interface

N/A

Array Type

N/A

External Interface

Network Interface

1xRJ45 self-adaptive 10/100/1000 Mbps network interface

USB Interface

1xUSB 2.0, 1xUSB 3.0

Serial Interface

N/A

Alarm In/Out

0/1

Network

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS

System Compatibility

ONVIF (PROFILE S/T/G), SDK, P2P

PoE

PoE Interface

16xRJ45 self-adaptive 10/100 Mbps network interface

Power per PoE Port

30W

Max Current per PoE Port

600mA

General

Web Version

Web6

Language

Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese

Operating Conditions

-10℃~55℃, 10%~90% RH

Power Supply

100~240V AC, 50~60 Hz

Consumption (without HDD)

 ≤25W (without HDD)

Chassis

1U

Dimensions

47.5×277×440mm, (1.87×10.91×17.32 inch)

Weight (without HDD)

3.08Kg (6.78lb)
