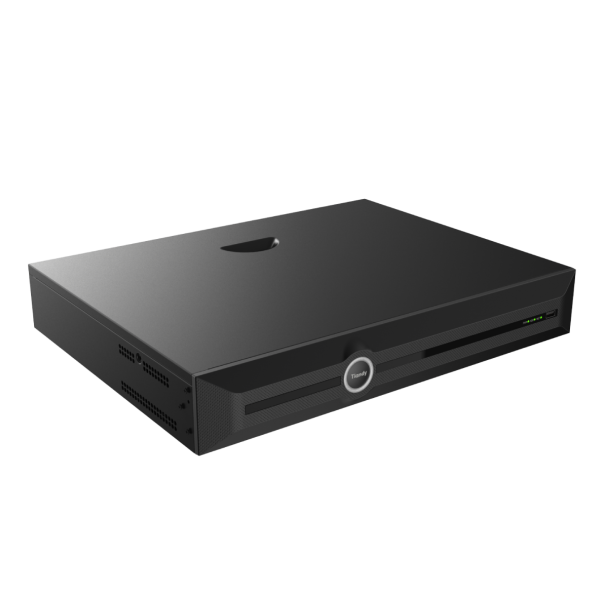

Products NVR Lite-H 4HDD H.265 4HDD 40ch NVR
H.265 4HDD 40ch NVR

H.265 4HDD 40ch NVR

Tiandy
اشتراک گذاری
TC-R3440
Spec: I/B/N/H/C
__________________________________
• S+265 Compression
• Support 40-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 200Mbps
• Outgoing Bandwidth 200Mbps
محصولات مرتبط

HD Input

• S+265/H.265/H.264 video formats

• Connectable to the third-party network cameras

• Up to 40-channel input

• Supports live view, storage, and playback of the connected camera at up to 12MP resolution

HD Output

• HDMI and VGA simultaneous output

• HDMI Video output at up to 4K (3840×2160) resolution

HD Storage

• 4 SATA interfaces, up to 10TB for each HDD

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 2×RJ45 self-adaptive 10/100/1000 Mbps network interfaces

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.

• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to improve the playback efficiency

• Web6 supports plug-in free browsing and can preview videos on all browsers

• Support cloud upgrade



Input

Video Input

40-ch

Max Resolution

12MP

Two-way Audio Input

1-ch, 3.5mm

Bandwidth

Income 200Mbps; Outgoing 200Mbps

Output

HDMI/VGA Output

HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

Screen Split

1/3/4/6/8/9/10/13/16/20/25/36/40/64

Audio Output

1×RCA

Decoding

Decoding Format

S+265/H.265/H.264

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Capability

3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 32×720P, 40×4CIF

Synchronous Playback

3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 16×720P

Records Encryption

Yes

Hard Disk

SATA

4 SATA interfaces for 4 HDDs

Capacity

Up to 10TB for each HDD

eSATA Interface

N/A

Array Type

JBOD, RAID0/1/5/6/10

External Interface

Network Interface

2xRJ45 self-adaptive 10/100/1000 Mbps network interfaces

USB Interface

1xUSB 2.0, 1xUSB 3.0

Serial Interface

N/A

Alarm In/Out

N/A

Network

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS

System Compatibility

ONVIF (PROFILE S/T/G), SDK, P2P

General

Web Version

Web6

Language

Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic

Operating Conditions

-10℃～55℃, 10%~90% RH

Power Supply

100~240V AC,  50~60 Hz

Consumption (without HDD)

≤25W (without HDD)

Chassis

1.5U

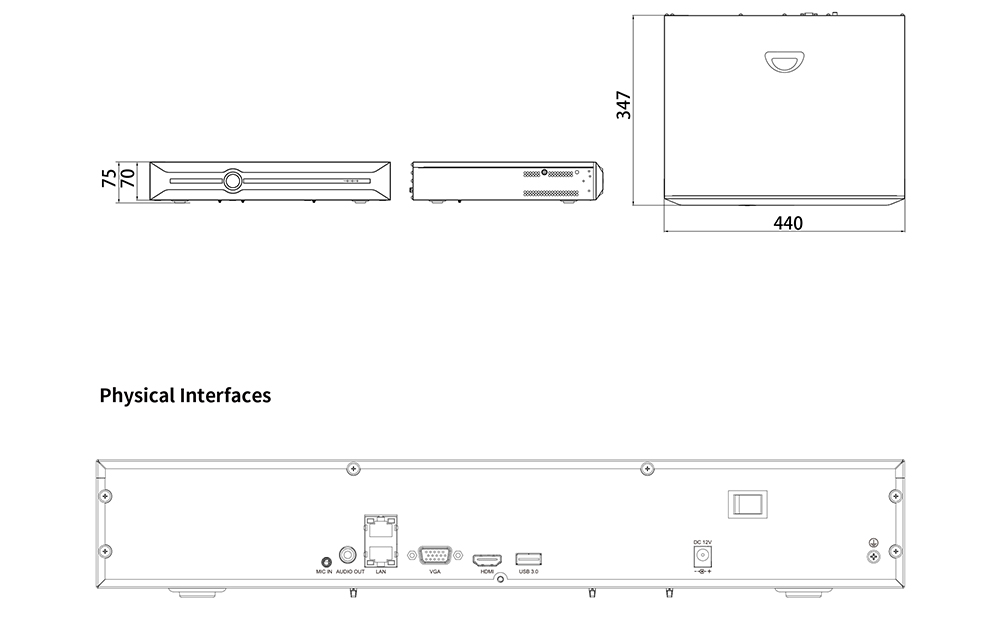

Dimensions

75×347×440mm, (2.95×13.66×17.32 inch)

Weight (without HDD)

3.35Kg (7.38lb)
