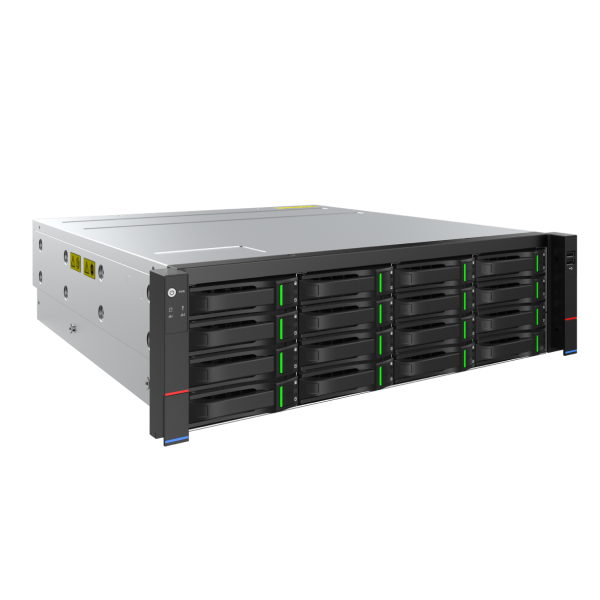

H.265 16HDD 80ch Redundant Power Supply NVR

Tiandy
TC-R31680
Spec: E/B/R/N
__________________________________
• S+265 Compression
• Support 80-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 320Mbps
• Outgoing Bandwidth 320Mbps

HD Input

• S+265/H.265/H.264 video formats

• Connectable to the third-party network cameras

• Up to 80 IP cameras can be connected

• Supports live view, storage, and playback of the connected camera at up to 12MP resolution

HD Output

• HDMI and VGA independent outputs

• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 16 SATA interfaces connectable for recording and backup on the front panel, up to 10TB for each HDD

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 2 self-adaptive 10/100/1000 Mbps network interfaces

Stability assurance

• Hot swap HDD

• Redundant power

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.

• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to improve the playback efficiency

• Web6 supports plug-in-free browsing and can preview videos on all browsers




Input

Video Input

80-ch

Max Resolution

12MP

Two-way Audio Input

1-ch, 3.5mm

Bandwidth

Income 320Mbps; Outgoing 320Mbps

Output

HDMI/VGA Output

HDMI 2-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

VGA 2-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

Screen Split

1/3/4/6/8/9/10/13/16/20/25/36/40/64

Audio Output

1x3.5mm, 1xBNC

Decoding

Decoding Format

S+265H.265/H.264

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Capability

3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 32×720P, 64×4CIF

Synchronous Playback

3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 16×720P

Records Encryption

Yes

Hard Disk

SATA

16 SATA interfaces for 16 HDDs

Capacity

Up to 10TB for each HDD

eSATA Interface

1 SATA interface

Array Type

JBOD, RAID0/1/5/6/10

External Interface

Network Interface

2xRJ45 self-adaptive 10/100/1000 Mbps network interfaces

USB Interface

2xUSB 2.0, 1xUSB 3.0

Serial Interface

2xRS-485, 1xRS-232

Alarm In/Out

16/4

Network

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS

System Compatibility

ONVIF (PROFILE S/T/G), SDK, P2P

General

Web Version

WEB6

Language

Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraismm (only for UI), Farsi (only for AI), Arabic (only for AI)

Operating Conditions

-10℃~55℃, 10%~90% RH

Power Supply

AC100~240V, 50/60HZ

Redundant Power

Yes

Consumption (without HDD)

 ≤100W (without HDD)

Chassis

3U

Dimensions

132×482.6×540mm, (5.2×19×21.26 inch)

Weight (without HDD)

13.75Kg (30.31lb)
