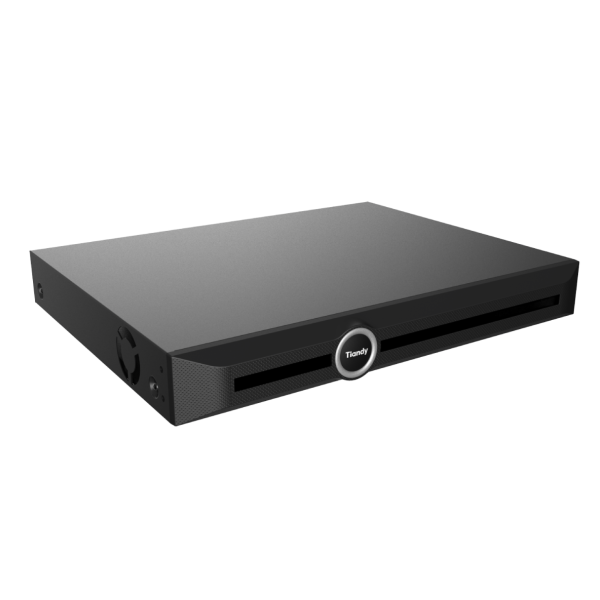

H.265 2 HDD 10ch Face Recognition NVR

Tiandy
TC-R3210
Spec: I/F
__________________________________
• S+265 Compression
• Support 10-ch input
• Up to 6MP Resolution Recording
• Incoming Bandwidth 80Mbps
• Outgoing Bandwidth 80Mbps

HD Input

• S+265/H.265/H.264 video formats

• Connectable to the third-party network cameras

• Up to 10-channel input

• Supports live view, storage, and playback of the connected camera at up to 6MP resolution

HD Output

• HDMI and VGA simultaneous outputs

HD Storage

• 2 SATA interfaces, up to 10TB

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 1×RJ45 self-adaptive 10/100 Mbps network interface

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.

• 1:N people face recognition.

• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to improve the playback efficiency

• Web6 supports plug-in-free browsing and can preview videos on all browsers

• Support cloud upgrade

• Support voice broadcast




Input

Video Input

10-ch

Max Resolution

6MP

Two-way Audio Input

1-ch, 3.5mm

Bandwidth

Income 80Mbps; Outgoing 80Mbps

Output

HDMI/VGA Output

HDMI: 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

VGA:1-ch, 1920×1080, 1280×720, 800×600, 1024×768

Screen Split

1/3/4/6/8/9/10

Audio Output

1×RCA

Decoding

Decoding Format

S+265/H.265/H.264

Recording Resolution

6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Capability

1×5MP, 1×4MP, 3×1080P, 5×720P, 10×4CIF

Synchronous Playback

1×5MP, 1×4MP, 3×1080P, 5×720P

Records Encryption

Yes

Hard Disk

SATA

2 SATA interfaces for 2 HDDs

Capacity

Up to 10TB for each HDD

eSATA Interface

N/A

Array Type

N/A

External Interface

Network Interface

1×RJ45 self-adaptive 10/100 Mbps network interface

USB Interface

2×USB 2.0

Serial Interface

N/A

Alarm In/Out

0/1

Reliablity

N+M Hot Standby

N/A

ANR

N/A

Face Recognition

Base Libraries

32

Face Pictures

10,000

Video Stream for Recognition

1

Picture Stream for Recognition

5

Face Picture Search

Yes

Network

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,

IGMP, QoS, IPV4, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS

System Compatibility

ONVIF (PROFILE S), SDK, P2P

General

Web Version

Web6

Language

Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism (UI), Arabic (UI), Vietnamese (UI)

Operating Conditions

-10℃~55℃, 10%~90% RH

Power Supply

DC12V 3.33A

Consumption (without HDD)

≤10W (without HDD)

Chassis

1U

Dimensions

45.1×255×231 mm (1.78×10.04×9.09 inch)

Weight (without HDD)

1.55Kg (3.42lb)
