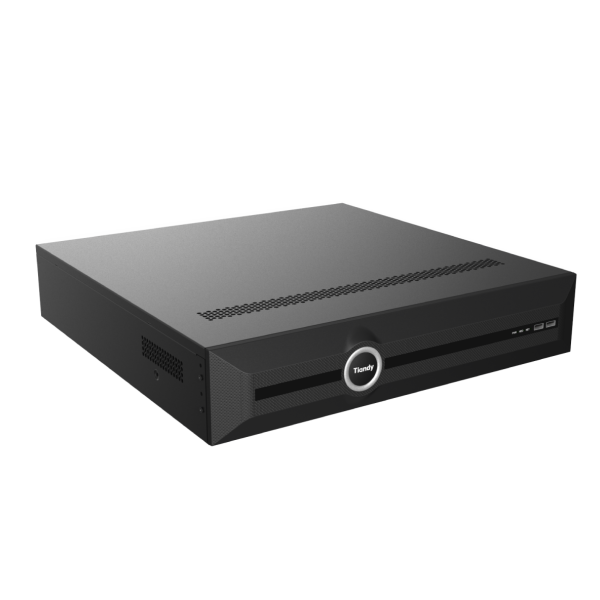

H.265 8 HDD 20ch Face Recognition NVR

Tiandy
TC-R3820
Spec: I/F/N
__________________________________
• S+265 Compression
• Support 20-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 400Mbps
• Outgoing Bandwidth 200Mbps

HD Input

• S+265/H.265/H.264 video formats

• Connectable to the third-party network cameras

• Up to 20-channel input

• Supports live view, storage, and playback of the connected camera at up to 12MP resolution

HD Output

• HDMI and VGA independent outputs

• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 8 SATA interfaces, up to 10TB for each HDD

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 2×RJ45 self-adaptive 10/100/1000 Mbps network interface

Various Applications

•Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.

• 1:N face recognition.

• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video; and smart playback to improve the playback efficiency

• Web6 supports plug-in-free browsing; and can preview videos on all browsers

• Support voice broadcast




Input

Video Input

20-ch

Max Resolution

12MP

Two-way Audio Input

1-ch, 3.5mm

Bandwidth

Income 400Mbps; Outgoing 200Mbps

Output

HDMI/VGA Output

HDMI: 2-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

VGA:2-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

Screen Split

1/3/4/6/8/9/10/13/16/20/25

Audio Output

1×3.5mm,  1×BNC

Decoding

Decoding Format

S+265/H.265/H.264

Recording Resolution

12MP/8MP/5MP/4MP/1080p/960p/720p/D1/2CIF/CIF

Preview Capability

2×12MP, 3×4K, 5×5MP, 7×4MP, 15×1080P, 30×720P, 20×4CIF

Synchronous Playback

2×12MP, 3×4K, 5×5MP, 7×4MP, 15×1080P, 16×720P

Records Encryption

Yes

Hard Disk

SATA

8 SATA interfaces for 8 HDDs

Capacity

Up to 10TB for each HDD

eSATA Interface

1 SATA interface

Array Type

JBOD,RAID0/1/5/10

External Interface

Network Interface

2×RJ45 self-adaptive 10/100/1000 Mbps network interfaces

USB Interface

2×USB 2.0, 1×USB 3.0

Serial Interface

2×RS485, 1×RS232

Alarm In/Out

16/4

Reliablity

N+M Hot Standby

Yes

ANR

Yes

Face Recognition

Base Libraries

300

Face Pictures

100,000

Video Stream for Recognition

8

Picture Stream for Recognition

16

Face Picture Search

Yes

Network

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,

IGMP, QoS, IPV4, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS

System Compatibility

ONVIF (PROFILE S), SDK, P2P

General

Web Version

Web6

Language

Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism (UI), Arabic (UI), Vietnamese (UI)

Operating Conditions

-10℃~55℃, 10%~90% RH

Power Supply

AC100~240V,50/60HZ

Consumption (without HDD)

≤100W (without HDD)

Chassis

2U

Dimensions

94×440×460 mm (3.7×17.32×18.11 inch)

Weight (without HDD)

7.2Kg (15.87lb)
