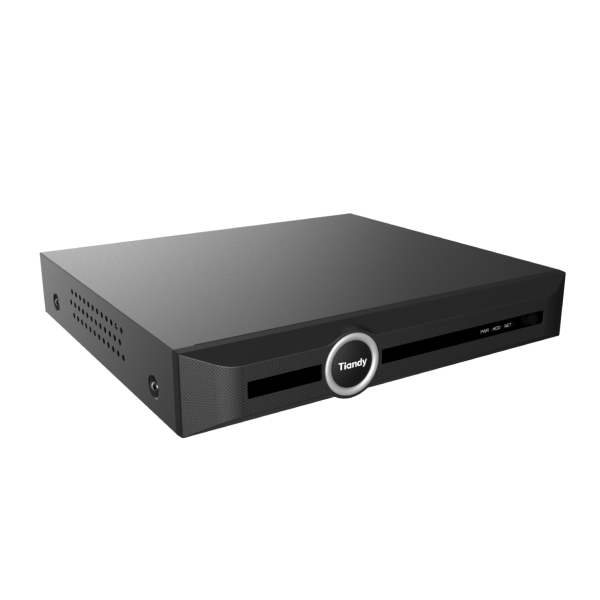

H.265 1HDD 20ch NVR

Tiandy
TC-R3120
Spec:I/B/K/V3.0
__________________________________
• S+265 Compression
• Support 20-ch input
• Up to 8MP Resolution Recording
• Incoming Bandwidth 80Mbps
• Outgoing Bandwidth 80Mbps

HD Input

• S+265/H.265/H.264 video formats

• Connectable to the third-party network cameras

• Up to 20-channel input

• Support live view, storage, and playback of the connected camera at up to 8MP resolution

HD Output

• HDMI and VGA simultaneous output

• HDMI Video output at up to 4K (3840×2160) resolution

HD Storage

• 1 SATA interface, up to 10TB for 1 HDD

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 1×RJ45 self-adaptive 10/100 Mbps network interface

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.

• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to improve the playback efficiency

• Web6 supports plug-in free browsing and can preview videos on all browsers

• Support cloud upgrade




Input

Video Input

20-ch

Max Resolution

8MP

Two-way Audio Input

1-ch, 3.5mm

Bandwidth

Income 80Mbps; Outgoing 80Mbps

Output

HDMI/VGA Output

HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800 ×600, 1024×768, 1366×768, 1440×900, 1280×800

VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

Screen Split

1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B

Audio Output

1×RCA

Decoding

Decoding Format

S+265/H.265/H.264

Recording Resolution

8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Capability

1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P, 20×4CIF

Synchronous Playback

1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P

Records Encryption

Yes

Hard Disk

SATA

1 SATA interfaces for 1 HDDs

Capacity

Up to 10TB for each HDD

eSATA Interface

N/A

Array Type

N/A

External Interface

Network Interface

1xRJ45 self-adaptive 10/100 Mbps network interface

USB Interface

2xUSB 2.0

Serial Interface

N/A

Alarm In/Out

4/1

Network

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS

System Compatibility

ONVIF (PROFILE S/T/G), SDK, P2P

General

Web Version

Web6

Language

Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic

Operating Conditions

-10℃~55℃, 10%~90% RH

Power Supply

DC12V 3.33A

Consumption (without HDD)

 ≤10W (without HDD)

Chassis

1U

Dimensions

45.1×255×231mm, (1.78×10.04×9.09 inch)

Weight (without HDD)

0.9Kg (1.98lb)
