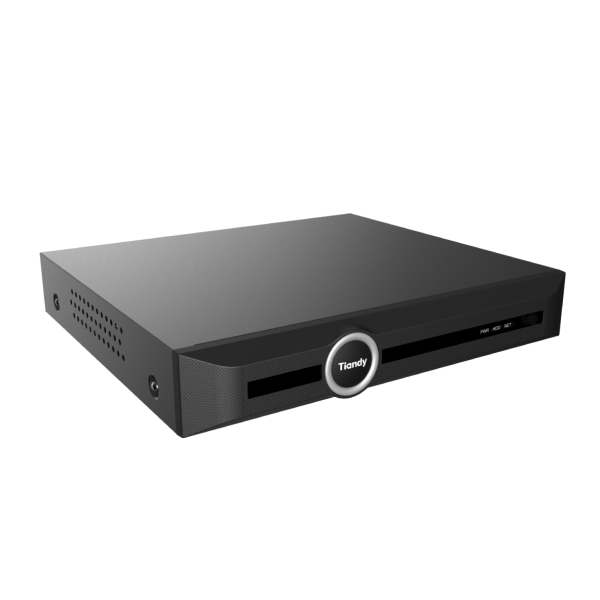

H.265 1HDD 5ch PSE NVR
Spec: I/B/P4/K/V3.0
__________________________________
• Up to 5-channel input
• 4 PoE ports
• Up to 6MP Resolution Recording
• Incoming Bandwidth 80Mbps
• Outgoing Bandwidth 80Mbps
-
HD Input
• Plug and play
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Up to 5-channel input
• 4 PoE ports
• Supports live view, storage, and playback of the connected camera at up to 8MP resolution
HD Output
• 1×HDMI and 1×VGA simultaneous outputs
• HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
• 1 SATA interfaces, up to 10TB for each HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
• 1×RJ45 self-adaptive 10/100 Mbps network interface
• PoE Port: 4×RJ45 self-adaptive 10/100 Mbps network interfaces
Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Smart search for the selected area in the video and smart playback to improve the playback efficiency
• Web6 supports plug-in-free browsing and can preview videos on all browsers
• Support cloud upgrade
• Support 250m long-distance transmission
|
Input |
|
|
Video Input |
5-ch |
|
Max Resolution |
8MP |
|
Two-way Audio Input |
1-ch, 3.5mm |
|
Bandwidth |
Income 80Mbps; Outgoing 80Mbps |
|
Output |
|
|
HDMI/VGA Output |
HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800 ×600, 1024×768, 1366×768, 1440×900, 1280×800 |
|
VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 |
|
|
Screen Split |
1/3/4/5/6 |
|
Audio Output |
1×RCA |
|
Decoding |
|
|
Decoding Format |
S+265/H.265/H.264 |
|
Recording Resolution |
8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Preview Capability |
1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 5×720P, 5×4CIF |
|
Synchronous Playback |
1×8MP, 1×6MP, 1×5MP, 2×4MP, 1×3MP, 4×1080P, 8×720P |
|
Records Encryption |
Yes |
|
Hard Disk |
|
|
SATA |
1 SATA interface for 1 HDD |
|
Capacity |
Up to 10TB for each HDD |
|
eSATA Interface |
N/A |
|
Array Type |
N/A |
|
External Interface |
|
|
Network Interface |
1xRJ45 self-adaptive 10/100 Mbps network interface |
|
USB Interface |
2xUSB 2.0 |
|
Serial Interface |
N/A |
|
Alarm In/Out |
4/1 |
|
Network |
|
|
Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS |
|
System Compatibility |
ONVIF (PROFILE S/T/G), SDK, P2P |
|
PoE |
|
|
PoE Interface |
4xRJ45 self-adaptive 10/100 Mbps network interface |
|
Power per PoE Port |
30W |
|
Max Current per PoE Port |
600mA |
|
General |
|
|
Web Version |
Web6 |
|
Language |
Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic |
|
Operating Conditions |
-10℃～55℃, 10%~90% RH |
|
Power Supply |
DC48V |
|
Consumption (without HDD) |
≤20W (without HDD) |
|
Chassis |
1U |
|
Dimensions |
45.1×255×231mm, (1.78×10.04×9.09 inch) |
|
Weight (without HDD) |
0.95Kg (2.09lb) |
