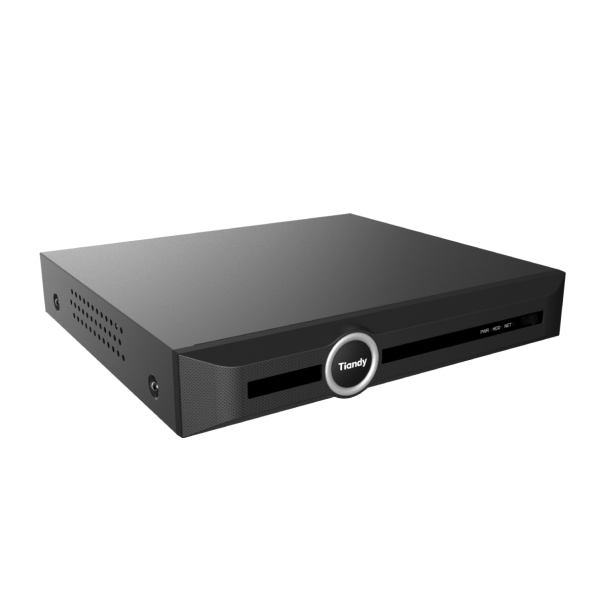

Products NVR Lite-K 1HDD H.265 1HDD 10ch PSE NVR
H.265 1HDD 10ch PSE NVR

H.265 1HDD 10ch PSE NVR

Tiandy
اشتراک گذاری
TC-R3110
Spec: I/B/P8/K/V3.0
__________________________________
• Up to 10-channel input
• 8 PoE ports
• Up to 8MP Resolution Recording
• Incoming Bandwidth 80Mbps
• Outgoing Bandwidth 80Mbps
محصولات مرتبط

HD Input

• Plug and play

• S+265/H.265/H.264 video formats

• Connectable to the third-party network cameras

• Up to 10-channel input

• 8 PoE ports

• Supports live view, storage, and playback of the connected camera at up to 8MP resolution

HD Output

• 1×HDMI and 1×VGA simultaneous output

•HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 1 SATA interface, up to 10TB for 1 HDD

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 1×RJ45 self-adaptive 10/100 Mbps network interface

• PoE Port: 8×RJ45 self-adaptive 10/100 Mbps network interfaces

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.

• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to improve the playback efficiency

• Web6 supports plug-in free browsing and can preview videos on all browsers

• Support cloud upgrade

• Support 250m long-distance transmission



Input

Video Input

10-ch

Max Resolution

8MP

Two-way Audio Input

1-ch, 3.5mm

Bandwidth

Income 80Mbps; Outgoing 80Mbps

Output

HDMI/VGA Output

HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800 ×600, 1024×768, 1366×768, 1440×900, 1280×800

VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

Screen Split

1/2/3/4/5/6/7/8/9/10

Audio Output

1×RCA

Decoding

Decoding Format

S+265/H.265/H.264

Recording Resolution

8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Capability

1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P, 10×4CIF

Synchronous Playback

1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P

Records Encryption

Yes

Hard Disk

SATA

1 SATA interface for 1 HDD

Capacity

Up to 10TB for each HDD

eSATA Interface

N/A

Array Type

N/A

External Interface

Network Interface

1xRJ45 self-adaptive 10/100 Mbps network interface

USB Interface

2xUSB 2.0

Serial Interface

N/A

Alarm In/Out

4/1

Network

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS

System Compatibility

ONVIF (PROFILE S/T/G), SDK, P2P

PoE

PoE Interface

8xRJ45 self-adaptive 10/100 Mbps network interface

Power per PoE Port

30W

Max Current per PoE Port

600mA

General

Web Version

Web6

Language

Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic

Operating Conditions

-10℃～55℃, 10%~90% RH

Power Supply

DC48V

Consumption (without HDD)

 ≤20W (without HDD)

Chassis

1U

Dimensions

45.1×255×231mm, (1.78×10.04×9.09 inch)

Weight (without HDD)

1Kg (2.2lb)
