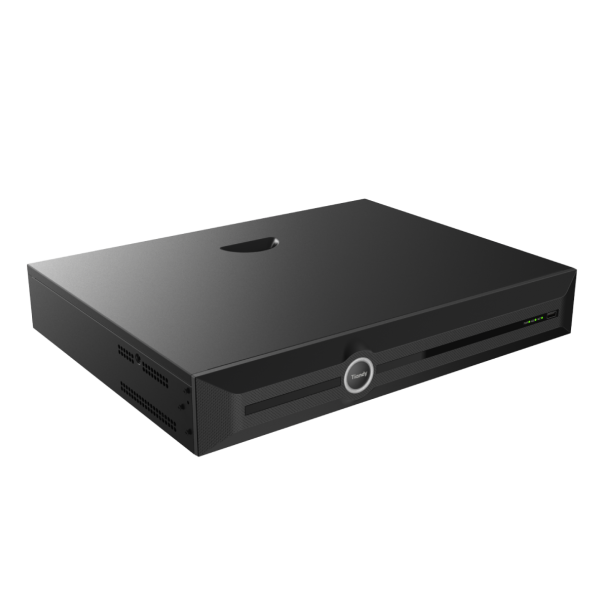

Products NVR Pro 4HDD H.265 4HDD 40ch NVR
H.265 4HDD 40ch NVR

H.265 4HDD 40ch NVR

Tiandy
اشتراک گذاری
TC-R3440
Spec: I/B/N
__________________________________
• S+265 Compression
• Support 40-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 320Mbps
• Outgoing Bandwidth 320Mbps
محصولات مرتبط

HD Input

• S+265/H.265/H.264 video formats

• Connectable to the third-party network cameras

• Up to 40 IP cameras can be connected

• Supports live view, storage, and playback of the connected camera at up to 12MP resolution

HD Output

• HDMI and VGA simultaneous output

• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 4 SATA interfaces connectable for recording and backup, up to 10TB for each HDD

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 2 self-adaptive 10/100/1000 Mbps network interfaces

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.

• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to improve the playback efficiency

• Web6 supports plug-in-free browsing and can preview videos on all browsers



Input
Video Input 40-ch
Max Resolution 12MP
Two-way Audio Input 1-ch, 3.5mm
Bandwidth Income 320Mbps; Outgoing 320Mbps

Output
HDMI/VGA Output HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1440×900, 1366×768, 1280×800,1280×720,1024×768,  800×600
VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768, 800×600
Screen Split 1/3/4/6/8/9/10/13/16/20A/20B/25/32/36/40/64
Audio Output 1xRCA

Decoding
Decoding Format S+265H.265/H.264
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability 3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 32×720P, 40×4CIF
Synchronous Playback 3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 16×720P
Records Encryption Yes

Hard Disk
SATA 4 SATA interfaces for 4 HDDs
Capacity Up to 10TB for each HDD
eSATA Interface N/A
Array Type JBOD, RAID0/1/5/6/10

External Interface
Network Interface 2xRJ45 self-adaptive 10/100/1000 Mbps network interfaces
USB Interface 1xUSB 2.0, 1xUSB 3.0
Serial Interface 1xRS-485, 1xRS-232
Alarm In/Out 16/4

Network
Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, P2P

General
Web Version WEB6
Language Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -10℃～55℃, 10%~90% RH
Power Supply DC12V 5A
Redundant Power N/A
Consumption (without HDD)  ≤40W (without HDD)
Chassis 1.5U
Dimensions 75×347×440mm, (2.95×13.66×17.32 inch)
Weight (without HDD) 3.8Kg (8.38lb)
