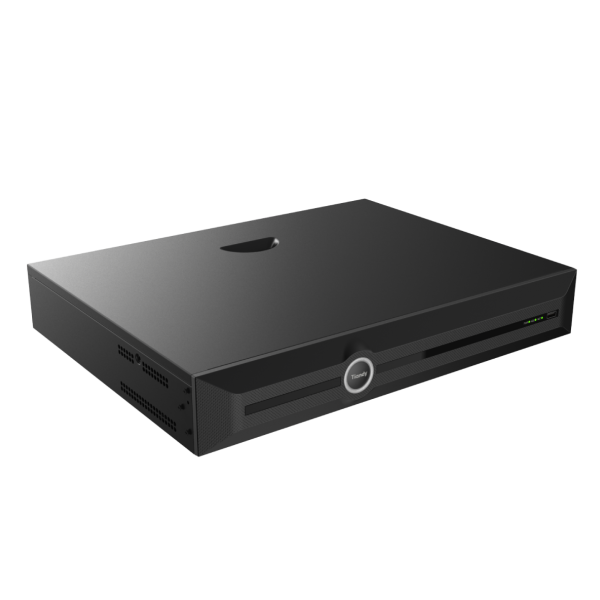

H.265 4HDD 40ch PSE NVR

Tiandy
TC-R3440
Spec: I/B/P16/H
__________________________________
• S+265 Compression
• Support 40-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 320Mbps
• Outgoing Bandwidth 320Mbps

HD Input

• Plug and play

• S+265/H.265/H.264 video formats

• Connectable to the third-party network cameras

• Up to 40-channel input

• 16 PoE ports

• Supports live view, storage, and playback of the connected camera at up to  12MP resolution

HD Output

• 1×HDMI and 1×VGA simultaneous outputs

• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 4 SATA interfaces, up to 10TB for each HDD

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 1xRJ45 self-adaptive 10/100/1000 Mbps network interface

• PoE Port: 16×RJ45 self-adaptive 10/100 Mbps network interfaces

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.

• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to improve the playback efficiency

• Web6 supports plug-in-free browsing and can preview videos on all browsers

• Support cloud upgrade

• Support 250m long-distance transmission




Input

Video Input

40-ch

Max Resolution

12MP

Two-way Audio Input

1-ch, 3.5mm

Bandwidth

Income 320Mbps; Outgoing 320Mbps

Output

HDMI/VGA Output

HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800 ×600, 1024×768, 1366×768, 1440×900, 1280×800

VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800

Screen Split

1/3/4/6/8/9/10/13/16/20A/20B/25/32/36/40/64

Audio Output

1×RCA

Decoding

Decoding Format

S+265/H.265/H.264

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Capability

3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 20×720P, 20×4CIF

Synchronous Playback

3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 16×720P

Records Encryption

Yes

Hard Disk

SATA

4 SATA interfaces for 4 HDDs

Capacity

Up to 10TB for each HDD

eSATA Interface

N/A

Array Type

JBOD, RAID0/1/5/6/10

External Interface

Network Interface

1xRJ45 self-adaptive 10/100/1000 Mbps network interface

USB Interface

2xUSB 2.0, 1xUSB 3.0

Serial Interface

1xRS485

Alarm In/Out

16/4

Network

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS

System Compatibility

ONVIF (PROFILE S/T/G), SDK, P2P

POE

POE Interface

16xRJ45 self-adaptive 10/100 Mbps network interface

Power per POE Port

30W

Max Current per POE Port

600mA

General

Web Version

Web6

Language

Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic

Operating Conditions

-1055, 10%~90% RH

Power Supply

100~240V AC, 50~60 Hz

Consumption (without HDD)

 ≤25W (without HDD)

Chassis

1.5U

Dimensions

75×440×347mm, (2.95×17.32×13.66 inch)

Weight (without HDD)

4.2Kg (9.26lb)
