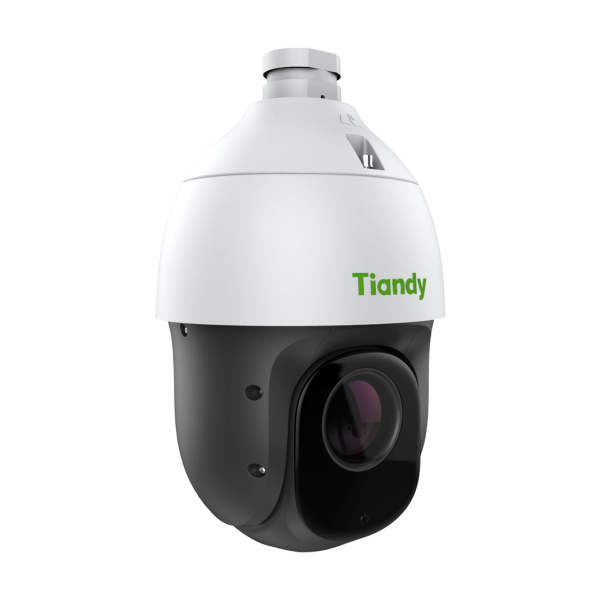

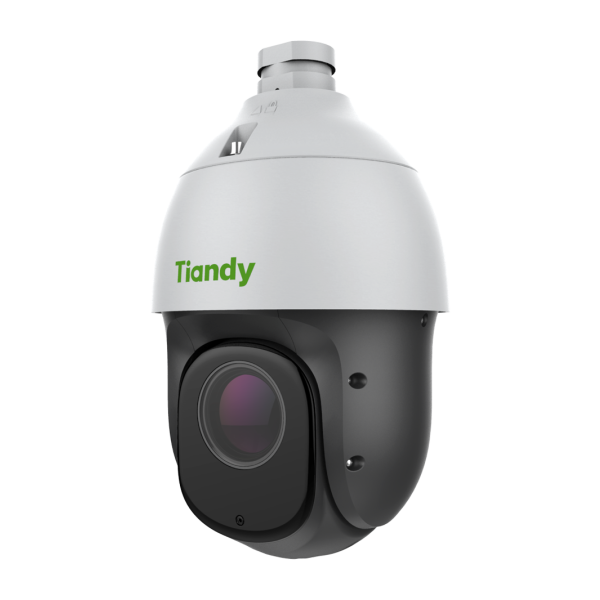

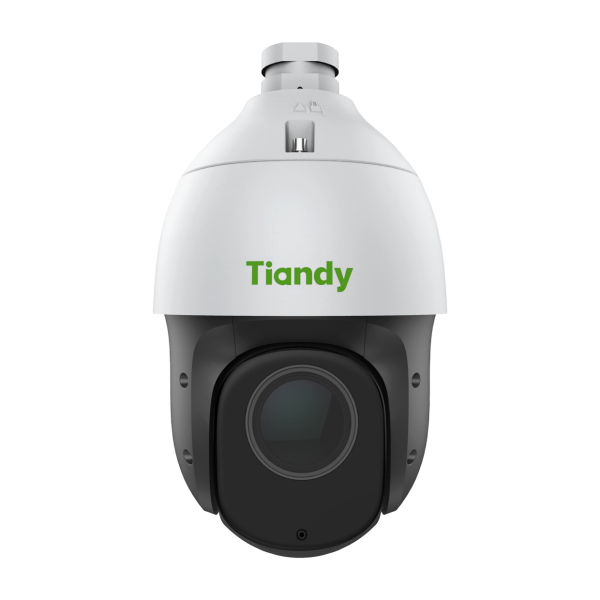

2MP 25× Starlight IR PTZ Camera

Tiandy
TC-H324S
Spec: 25X/I/E/V3.0
__________________________________
· Up to 1920X1080@30fps
· 0.001Lux@F1.5
· Optical zoom: 25×, digital zoom 16×
· Smart IR, IR Range: 150m
· S+265/H.265/H.264/M-JPEG

· Up to 1920×1080@30fps

· Min. illumination Color: 0.001Lux@F1.5

· Optical zoom: 25×, digital zoom 16×

· Smart IR, IR Range: 150m

· S+265/H.265/H.264/M-JPEG

· Plugin Free

· IP66






Camera

Image Sensor

1/2.8" CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

Dual IR Cut Filter with Auto Switch

Wide Dynamic Range

140dB

Optical Zoom

25×

Digital Zoom

16×

Lens

Focal Length

4.8mm~120mm

Zoom Speed

<4s

Angle of View

Horizontal: 58.5° (w)~2.8° (t)

Vertical:  33.2° (w)~1.5° (t)

Aperture Range

F1.5~F3.8

Pan&Tilt

Pan Range

360°

Pan Speed

Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 240°/s

Tilt Range

-16°~90° (Auto flip)

Tilt Speed

Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s

3D Position

Yes

Presets

500

Preset Accuracy

±0.4°

Scan

8

Cruise

16, up to 32 presets per cruise

Pattern

8, each with 600s memory or 1000 orders

Power-off Memory

Yes

RS-485 Protocols

N/A

Illuminator

IR LEDs

6

IR Range

Up to 150m

IR Irradiation Angle

Adjustable by Zoom

White LEDs

N/A

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Sampling Rate

8kHz/32kHz/48kHz


Max. Resolution

2.0MP (1920×1080)

Main Stream

PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480)

NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)

Sub Stream

PAL: 25fps (704×576, 704×288, 640×360, 352×288)

NTSC: 30fps (704×480, 704×240, 640×360, 352×240)

Third Stream

PAL: 25fps (352×288) NTSC: 30fps (352×240)

Image Setting

Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Image Enhancement

BLC/3D DNR/HLC

ROI

7 Areas for Both Main and Sub Stream

OSD

16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions

Picture Overlay

Yes

Privacy Mask

Yes

Smart Defog

Yes

Feature

Alarm Trigger

Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception

Video Analytics

Tripwire, Double Tripwire, Perimeter, Object  Abandon, Object Lost,Demographics(People Counting), On Duty Detection, Video Abnormal, Audio Abnorma

Early Warning(EW)

N/A

Auto-Tracking

N/A

Face Detection and Analytics

Operating Mode

N/A

Face Detection Performance

N/A

Face Exposure Brightness

N/A

Min. Face Pixel

N/A

Precautionary Alert

N/A

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP,  QoS, IPV4, MULTICAST

System Compatibility

ONVIF (PROFILE S/T/G/M), SDK, CGI, P2P

ANR

Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)

Remote Connection

≤7

Client

Easy7, EasyLive Plus

Web Version

web6

Interface

Communication Interface

1 RJ45 10M/100M self adaptive Ethernet port

Audio

1/1

Alarm

1/1

Speaker

N/A

Reset Button

Yes

On-board storage

Built-in MicroSD card slot, up to 512 GB

RS-485

N/A

BNC

N/A

Wiper

N/A

General

Firmware Version

-

Web Client Language

15 languages

Simple Chinese, Traditional Chinese, English, Spanish,  Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese

Operating Conditions

 -30°C~70°C (IR OFF),  -30°C~40°C (IR ON), 0-95%RH

Power Supply

DC12V±10%/PoE

Power Consumption

9W(IR OFF), 22W(MAX)

Protection

IP66,  Lightning protection, surge protection and voltage transient protection meets EN 55035:2017

Heater

N/A

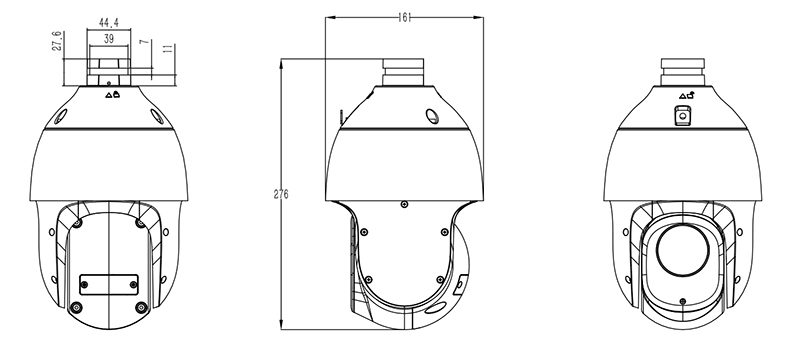

Dimensions

Φ161x276mm(Φ6.34×10.87inch)

Weight

2.9kg(6.39lb)
