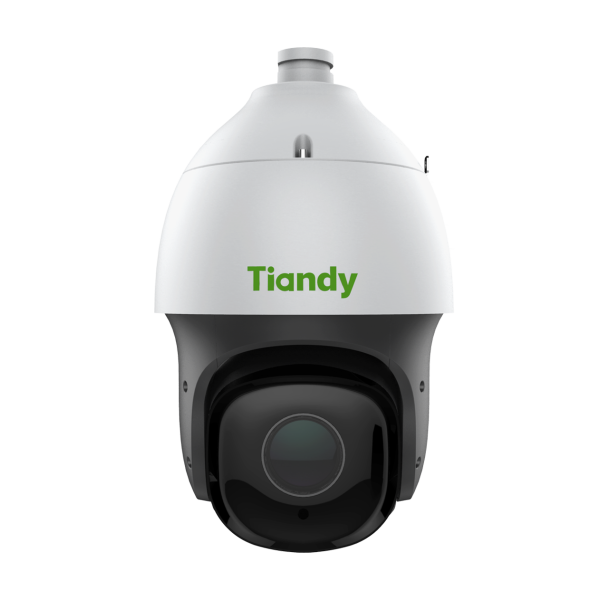

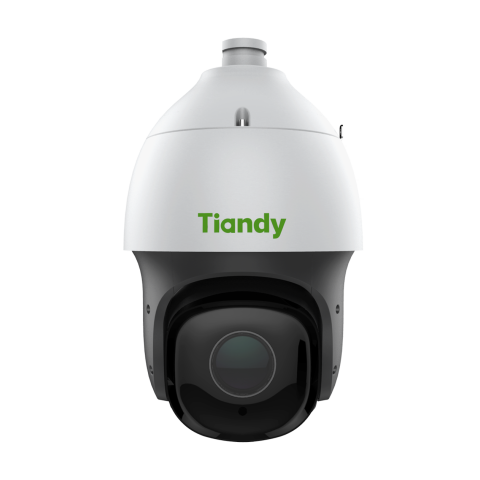

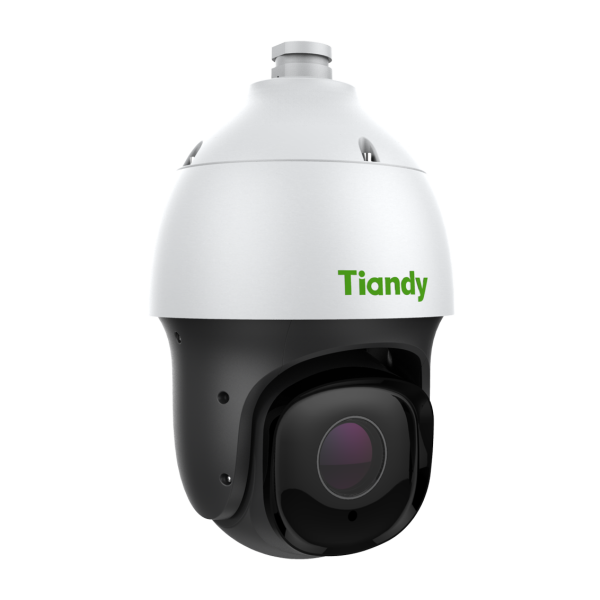

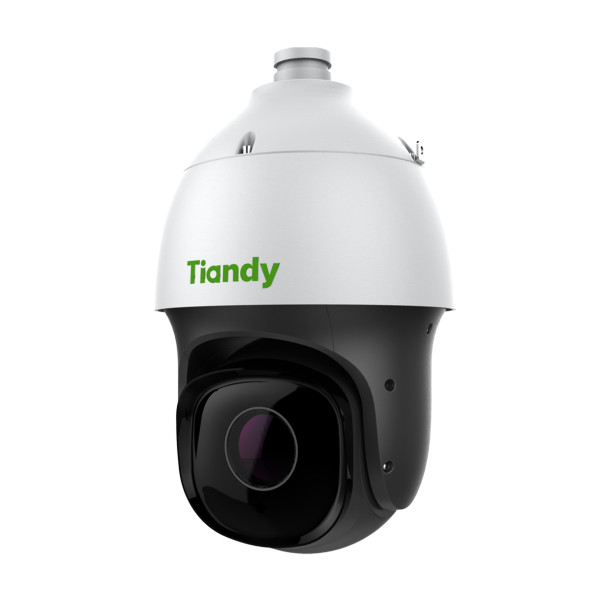

2MP 25× Starlight IR PoE AI PTZ Camera

Image Sensor

1/2.8" CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

Dual IR Cut Filter with Auto Switch

Wide Dynamic Range

140dB

Optical Zoom

25×

Digital Zoom

16×

Lens

Focal Length

4.8mm~120mm

Zoom Speed

<4s

Angle of View

Horizontal: 58.5° (w)~2.8° (t)

Vertical: 33.2° (w)~1.5° (t)

Aperture Range

F1.5~F3.8

Pan&Tilt

Pan Range

360°

Pan Speed

Pan Manual Speed: 0.1°~120°/s, Pan Preset Speed: 180°/s

Tilt Range

-16°~90° (Auto flip)

Tilt Speed

Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s

3D Position

Yes

Presets

500

Preset Accuracy

±0.6°

Scan

8

Cruise

16, up to 32 presets per cruise

Pattern

8, each with 600s memory or 1000 orders

Power-off Memory

Yes

RS-485 Protocols

N/A

Illuminator

IR LEDs

6

IR Range

Up to 150m

IR Irradiation Angle

Adjustable by Zoom

White LEDs

N/A

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

N/A

Audio Bit Rate

N/A


Max. Resolution

2.0MP (1920×1080)

Main Stream

PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480)

NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)

Sub Stream

PAL: 25fps (704×576, 704×288, 640×360, 352×288)

NTSC: 30fps (704×480, 704×240, 640×360, 352×240)

Third Stream

PAL: 25fps (352×288) NTSC: 30fps (352×240)

Image Setting

Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Image Enhancement

BLC/3D DNR/HLC

ROI

7 Dynamic Areas for Both Main and Sub Stream

OSD

16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions

Picture Overlay

Yes

Privacy Mask

Yes

Smart Defog

Yes

Feature

Alarm Trigger

Motion Detection, Mask Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection

Video Analytics

Tripwire, Double Tripwire, Perimeter, Object  Abandon, Object Lost,  Loitering, Running,  Video Abnormal,  On-duty detection, Face Detection, Face Capture

Early Warning(EW)

N/A

Auto-Tracking

N/A

Face Detection and Analytics

Operating Mode

Face capture, intelligent monitoring optional, default intelligent monitoring

Face Detection Performance

Detects up to 16 faces at the same scene

Face Exposure Brightness

Default 35, 1~100 brightness optional

Min. Face Pixel

Default 80, 19~1920 optional

Precautionary Alert

Three level

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP,  IGMP, QoS, IPV4, IPV6, MULTICAST

System Compatibility

ONVIF (PROFILE S/T/G), SDK, CGI, P2P

ANR

 Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)

Remote Connection

≤7

Client

Easy7, EasyLive

Web Version

web6

Interface

Communication Interface

1 RJ45 10M/100M self adaptive Ethernet port

Audio

N/A

Alarm

N/A

Speaker

N/A

Reset Button

Yes

On-board storage

Built-in Micro SD card slot, up to 512 GB

RS-485

N/A

BNC

N/A

Wiper

N/A

General

Firmware Version

-

Web Client Language

15 languages

Simple Chinese, Traditional Chinese, English, Spanish,  Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese

Operating Conditions

 -30°C~65°C (IR OFF),  -30°C ~40°C (IR ON), 0-95%RH

Power Supply

AC24V±15%/PoE

Power Consumption

11W(IR OFF), 22W(IR ON)

Protection

IP67,  Lightning protection, surge protection and voltage transient protection meets EN 55035:2017

Heater

N/A

Dimensions

Φ222x372mm(Φ8.74×14.65inch)

Weight

4.6kg（10.14lb）
