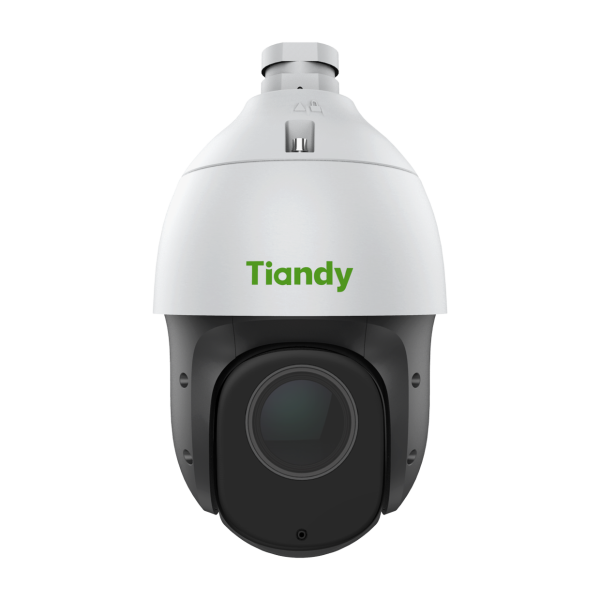

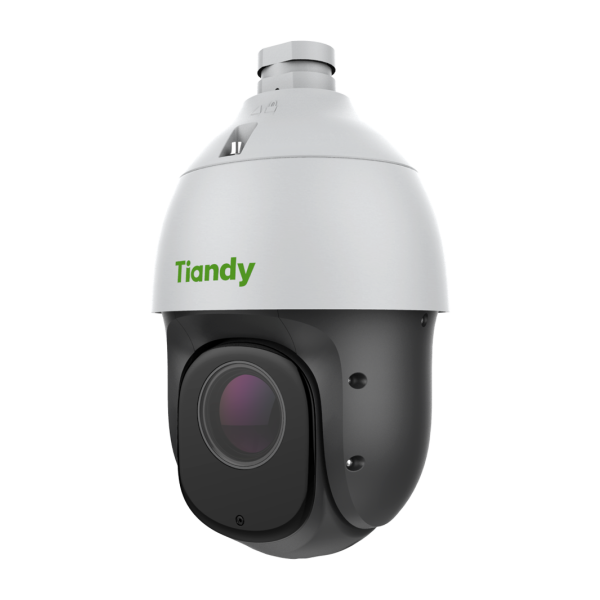

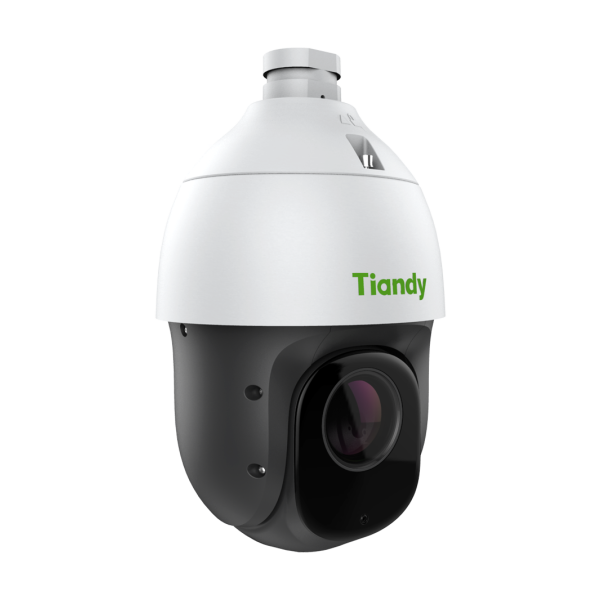

2MP 25× Starlight IR PTZ Camera

Tiandy
TC-H324S
Spec: 25X/I/E
__________________________________
· Up to 1920X1080@30fps
· 0.001Lux@F1.5
· Optical zoom: 25×, digital zoom 16×
· Smart IR, IR Range: 150m
· S+265/H.265/H.264/M-JPEG

· Up to 1920×1080@30fps

· Min. illumination Color: 0.001Lux@F1.5

· Optical zoom: 25×, digital zoom 16×

· Smart IR, IR Range: 150m

· S+265/H.265/H.264/M-JPEG

· Built-in Heater

· Plugin Free

· IP66




Camera

Image Sensor

1/2.8" CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

Dual IR Cut Filter with Auto Switch

Wide Dynamic Range

140dB

Optical Zoom

25×

Digital Zoom

16×

Lens

Focal Length

4.8mm~120mm

Zoom Speed

<4s

Angle of View

Horizontal: 58.5° (w)~2.8° (t)

Vertical:  33.2° (w)~1.5° (t)

Aperture Range

F1.5~F3.8

Pan&Tilt

Pan Range

360°

Pan Speed

Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 240°/s

Tilt Range

-16°~90° (Auto flip)

Tilt Speed

Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s

3D Position

Yes

Presets

500

Preset Accuracy

±0.4°

Scan

8

Cruise

16, up to 32 presets per cruise

Pattern

8, each with 600s memory or 1000 orders

Power-off Memory

Yes

RS-485 Protocols

N/A

Illuminator

IR LEDs

6

IR Range

Up to 150m

IR Irradiation Angle

Adjustable by Zoom

White LEDs

N/A

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio Bit Rate

8K~48Kbps


Max. Resolution

2.0MP (1920×1080)

Main Stream

PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480)

NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)

Sub Stream

PAL: 25fps (704×576, 704×288, 640×360, 352×288)

NTSC: 30fps (704×480, 704×240, 640×360, 352×240)

Third Stream

PAL: 25fps (352×288) NTSC: 30fps (352×240)

Image Setting

Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Image Enhancement

BLC/3D DNR/HLC

ROI

7 Dynamic Areas for Both Main and Sub Stream

OSD

16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions

Picture Overlay

Yes

Privacy Mask

Yes

Smart Defog

Yes

Feature

Alarm Trigger

Harsh Voice Alarm, Motion Detection, Mask Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection

Video Analytics

Tripwire, Double Tripwire, Perimeter, Object  Abandon, Object Lost, Loitering, Running, Heatmap, On-duty detection, Video Abnormal, Audio Abnormal,Heatmap

Early Warning(EW)

N/A

Auto-Tracking

N/A

Face Detection and Analytics

Operating Mode

N/A

Face Detection Performance

N/A

Face Exposure Brightness

N/A

Min. Face Pixel

N/A

Precautionary Alert

N/A

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP,  IGMP,   QoS, IPV4, MULTICAST

System Compatibility

ONVIF (PROFILE S/T/G), SDK, CGI, P2P

ANR

Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)

Remote Connection

≤7

Client

Easy7, EasyLive

Web Version

web6

Interface

Communication Interface

1 RJ45 10M/100M self adaptive Ethernet port

Audio

1/1

Alarm

1/1

Speaker

N/A

Reset Button

Yes

On-board storage

Built-in MicroSD card slot, up to 256 GB

RS-485

N/A

BNC

N/A

Wiper

N/A

General

Firmware Version

-

Web Client Language

15 languages

Simple Chinese, Traditional Chinese, English, Spanish,  Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese

Operating Conditions

 -40°C~70°C (IR OFF),  -40°C~40°C (IR ON), 0-95%RH

Power Supply

DC12V±10%/PoE

Power Consumption

10.7W(IR OFF), 21W(IR ON)

Protection

IP66,  Lightning protection, surge protection and voltage transient protection meets EN 55035:2017

Heater

Yes

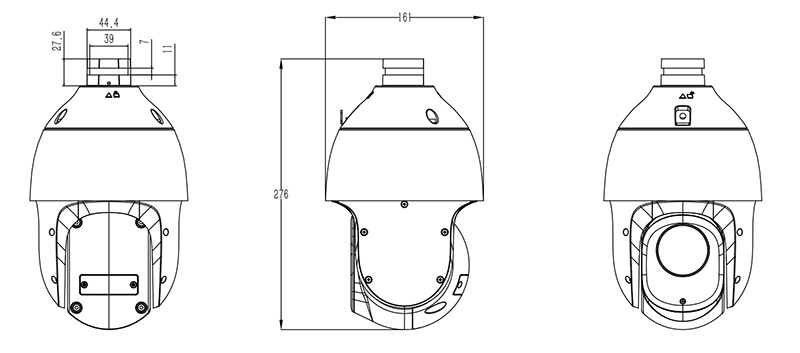

Dimensions

Φ161x276mm(Φ6.34×10.87inch)

Weight

2.9kg(6.39lb)
