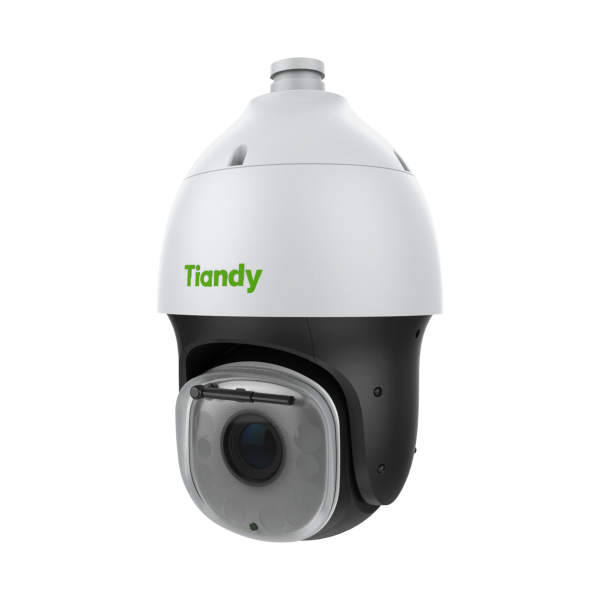

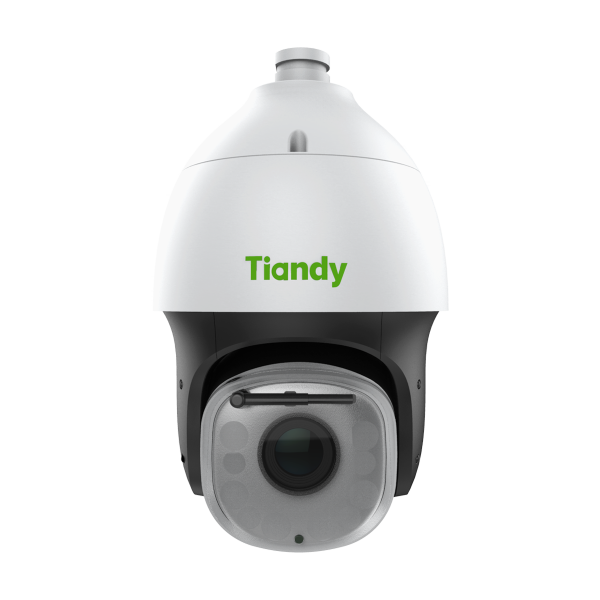

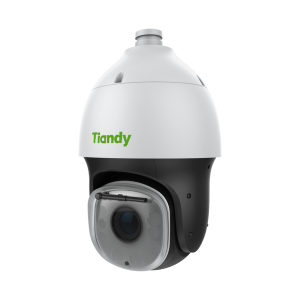

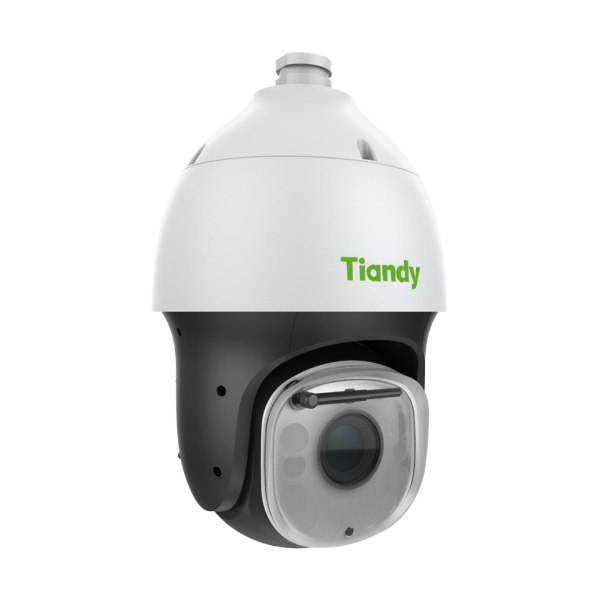

5MP 44× Super Starlight IR Face Capture AEW PTZ Camera
TC-A3563
Spec: 44X/I/A
__________________________________
· Auto-Tracking Early Warning (AEW)
· Up to 3072×1728@20fps
· 0.0008Lux@F1.5
· Optical zoom: 44×, digital zoom 16×
· Built-in Speaker
Spec: 44X/I/A
__________________________________
· Auto-Tracking Early Warning (AEW)
· Up to 3072×1728@20fps
· 0.0008Lux@F1.5
· Optical zoom: 44×, digital zoom 16×
· Built-in Speaker
محصولات مرتبط
-
· Auto-Tracking Early Warning (AEW)
· Up to 3072×1728@20fps
· Min. illumination Color: 0.0008Lux@F1.5
· Optical zoom: 44×, digital zoom 16×
· Built-in Speaker
· Support Human/Vehicle Classification
· Support Laser Point
· Face Capture/intelligent monitoring mode
· Smart IR, IR Range:180m
· S+265/H.265/H.264/M-JPEG
· IP66
|
Camera |
|
| Image Sensor | 1/1.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.0008Lux@ (F1.6, AGC ON) |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter |
| Wide Dynamic Range | True WDR |
| Optical Zoom | 44× |
| Digital Zoom | 16× |
|
Lens |
|
| Focal Length | 6mm~264mm |
| Zoom Speed | <5s |
| Angle of View | Horizontal filed of view: 61.8° (w)~2.3° (t) |
| Aperture Range | F1.6~F5.3 |
|
Pan&Tilt |
|
| Pan Range | 360° |
| Pan Speed | Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s |
| Tilt Range | -16°~90° (Auto flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s |
| 3D Position | Yes |
| Presets | 500 |
| Preset Accuracy | ±0.4° |
| Scan | 8 |
| Cruise | 16, up to 32 presets per cruise |
| Pattern | 8, each with 600s memory or 1000 orders |
| Power-off Memory | Yes |
| RS-485 Protocols | DOME_PELCO_D, DOME_PELCO_P, DOME_PLUS |
|
Illuminator |
|
| IR LEDs | 8 |
| IR Range | Up to 180m |
| IR Irradiation Angle | Adjustable by Zoom |
| White LEDs | 2 |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | 8K~48Kbps |
|
Image |
|
| Max. Resolution | 3072×1728 |
| Main Stream | PAL: 20fps (3072×1728), 25fps (2560×1440, 2304×1296), 50fps (1920x1080, 1280x960, 1280x720) |
| NTSC: 20fps (3072×1728), 30fps (2560×1440, 2304×1296), 60fps (1920x1080, 1280x960, 1280x720) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | PAL: 25fps (352×288) NTSC: 30fps (352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream, support auto-tracking ROI |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privace Mask | Yes |
| Smart Defog | Yes |
|
Feature |
|
| Alarm Trigger | Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Face Detection, People Counting, Crowed, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap, Safety Helmet Detection |
| Early Warning(EW) | Yes |
| Auto-Tracking | Yes |
|
Face Detection and Analytics |
|
| Operating Mode | Face capture, intelligent monitoring optional, default face capture |
| Face Detection Performance | Detects up to 16 faces at the same scene |
| Face Exposure Brightness | Default 35, 1-100 brightness optional |
| Min. Face Pixel | Default 80, 19-1920 optional |
| Face Recognition | N/A |
| Face Library | N/A |
| Face Pictures | N/A |
| Face Library Management | N/A |
| Face Recognition Alert | N/A |
| Precautionary Alert | Three level |
|
Network |
|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE |
| System Compatibility | ONVIF (PROFILE S), SDK, CGI, P2P |
| ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web6 |
|
Interface |
|
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio | 1/1 |
| Alarm | 8/2 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 128 GB |
| RS-485 | Yes |
| BNC | Yes |
| Wiper | Yes |
|
General |
|
| Firmware Version | NVSS_V20.3.1.20190612 |
| 12 languages | |
| Web Client Language | English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai,French, Polish, Dutch |
| Operating Conditions | -30°~65°C, 0-95% RH |
| Power Supply | AC24V±15% |
| Power Consumption | 22W (IR OFF), 45W (IR ON) |
| Protection | IP66 |
| Heater | N/A |

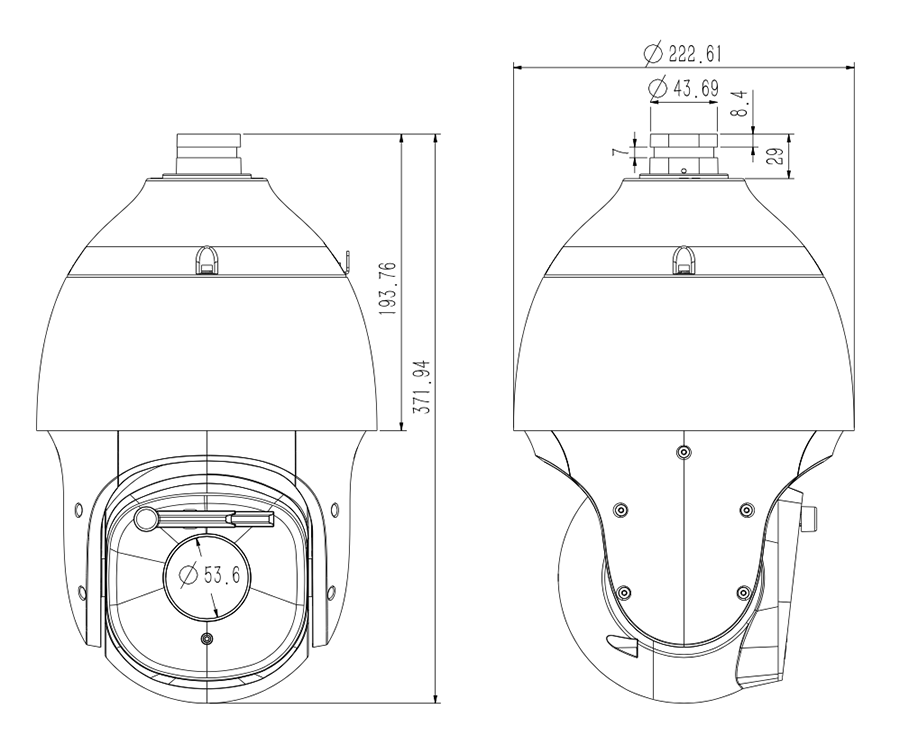

| Dimensions | Φ222x372 mm (Φ8.74×14.65 inch) |
| Weight | 5.5kg (12.13lb) |
