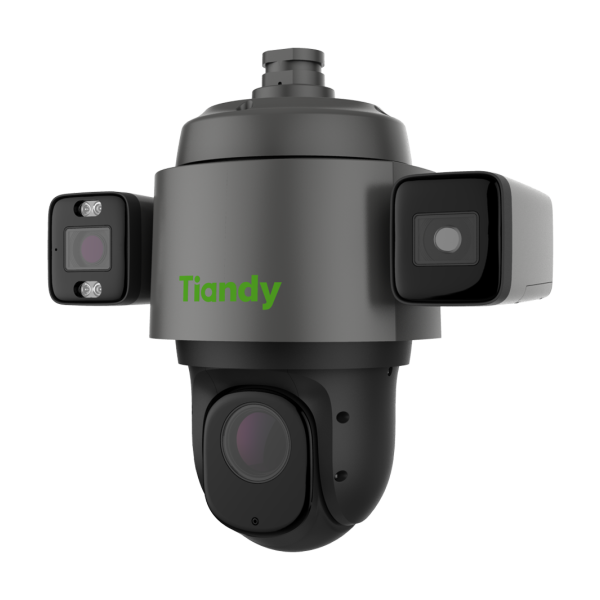

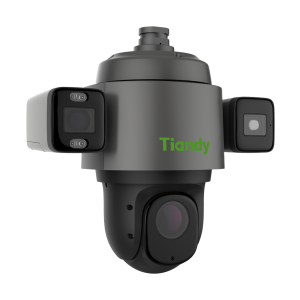

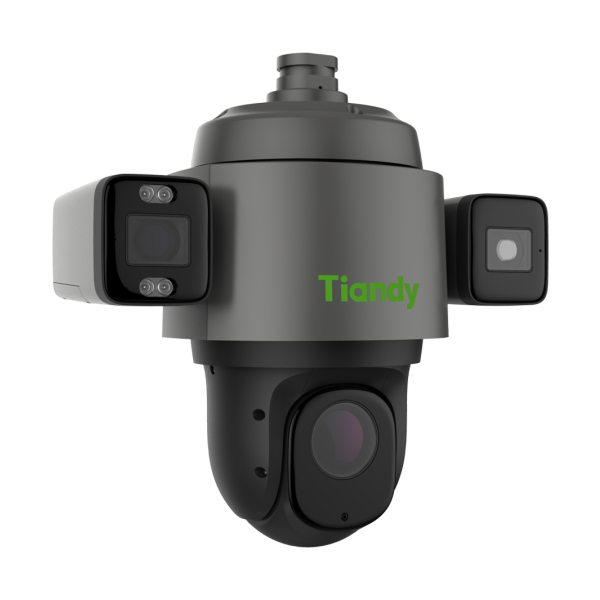

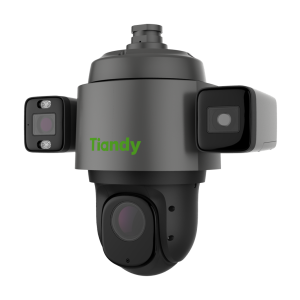

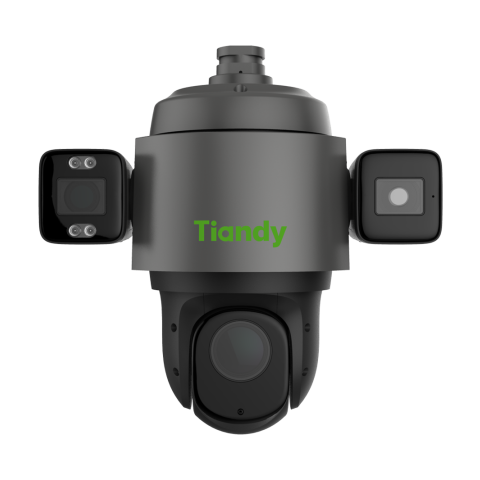

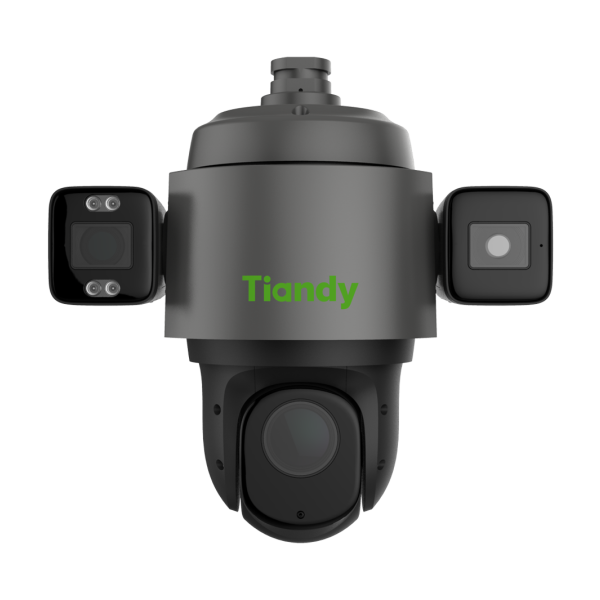

5MP Video Structure AI Dual PTZ Camera
TC-A35555
Spec: 0/A/2.8-12mm/9-54mm
__________________________________
· Dual PTZ design
· 5MP varifocal PTZ-bullet for overall scenario and 5MP speed dome for detailed view
· Resolution up to 3072×1728@20fps
Spec: 0/A/2.8-12mm/9-54mm
__________________________________
· Dual PTZ design
· 5MP varifocal PTZ-bullet for overall scenario and 5MP speed dome for detailed view
· Resolution up to 3072×1728@20fps
محصولات مرتبط
-
· Dual PTZ design
· 5MP varifocal PTZ-bullet for overall scenario and 5MP speed dome for detailed view
· Resolution up to 3072×1728@20fps
· Min. illumination Color: 0.0008Lux@F1.0 (PTZ-bullet)
· Optical zoom of PTZ-bullet: 4×, digital zoom 16×
· Optical zoom of speed dome: 6×, digital zoom 16×
· Smart IR, IR Range: 100m
· Support blue&red flash warning
· Bulit-in dual Mic& dual Speaker
· Built-in Electronic Compass
· Support video structure analysis
· S+265/H.265/H.264/M-JPEG
· Support Human/Vehicle Classification
· Plugin Free
· IP66
|
Camera |
|
| Image Sensor | PTZ-bullet: 1/1.8" CMOS Speed dome: 1/1.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | PTZ-bullet: Color: 0.0008Lux@ (F1.36, AGC ON), BW: 0lux with IR Speed Dome: Color: 0.0008Lux@ (F1.35, AGC ON), BW: 0lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | PTZ-bullet: 120dB; Speed Dome: 140dB |
| Optical Zoom | PTZ-bullet: 4×; Speed Dome: 6× |
| Digital Zoom | PTZ-bullet: 16×; Speed Dome: 16× |
|
Lens |
|
| Focal Length | PTZ-bullet: 2.8~12mm; Speed Dome: 9~54mm |
| Zoom Speed | <3s |
| Angle of View | PTZ-bullet: Horizontal: 84.8° (w)~49° (t), vertical: 49.3° (w)~27.6° (t) Speed Dome: Horizontal: 42.3° (w)~32.1° (t), vertical: 24.3° (w)~18.4° (t) |
| Aperture Range | PTZ-bullet: F1.36~F2.0; Speed Dome: F1.35~F1.55 |
|
Pan&Tilt |
|
| Pan Range | PTZ-bullet: 260°; Speed Dome: 360° |
| Pan Speed | PTZ-bullet: Pan Manual Speed: 0.1°~100°/s, Pan Preset Speed: 100°/s Speed Dome: Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 300°/s |
| Tilt Range | PTZ-bullet: 0°~30°; Speed Dome: -3°~90° (Auto flip) |
| Tilt Speed | PTZ-bullet: Tilt Manual Speed: 0.1°~15°/s, Tilt Preset Speed: 15°/s Speed Dome: Tilt Manual Speed: 0.1°~100°/s, Tilt Preset Speed: 150°/s |
| 3D Position | Yes |
| Presets | PTZ-bullet: 256; Speed Dome: 500 |
| Preset Accuracy | ±0.5° |
| Scan | Speed Dome: 8 |
| Cruise | Speed Dome: 16, up to 32 presets per cruise |
| Pattern | Speed Dome: 8, each with 600s memory or 1000 orders |
| Power-off Memory | Yes |
| RS-485 Protocols | DOME_PELCO_D，DOME_PELCO_P，DOME_PLUS |
|
Illuminator |
|
| IR LEDs | 6 |
| IR Range | Up to 100m |
| IR Irradiation Angle | Adjustable by Zoom |
| White LEDs | 4, up to 30m |
| Blue&Red Flash LEDs | Yes |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~8Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K～48Kbps |
|
Image |
|
| Max. Resolution | 5.0MP (3072×1728) |
| Main Stream | PAL: 20fps (3072×1728), 25fps (2560×1440, 2304×1296, 1920x1080, 1280x720, 640x480, 704x576) |
| NTSC: 20fps (3072×1728), 30fps (2560×1440, 2304×1296, 1920x1080, 1280x720, 640x480, 704x480) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×576, 704×288, 640×360, 352×288) | |
| Third Stream | PAL: 25fps (704×576, 704×288, 352×288) NTSC: 30fps (704×576, 704×288, 352×288) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, 96x96, 128×128, adaptable size, letters such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes |
| Smart Defog | Yes |
|
Feature |
|
| Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Heatmap, Video Abnormal, Crowd, Audio Abnormal, Demographics(People Counting), On Duty Detection, Safety Helmet Detection, Auto tracking, Face Capture |
| Video Structure Analytics | Face metadata: age, gender, glasses, beards, masks, hat Human body metadata: gender, masks, hair, bag, tops, tops color, bottoms, bottoms color Vehicle metadata: type, color, brand Non-vehicle metadata: type |
| Early Warning(EW) | Yes |
| Auto-Tracking | Yes |
| Face Detection and Analytics | |
| Face Detection Performance | Detects up to 32 faces at the same scene |
| Face Exposure Brightness | Default 35, 1~100 brightness optional |
| Min. Face Pixel | Default 60, 26~2560 optional |
| Network | |
| Protocols | 802.1X/TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv4/IPv6/SNMP/SMTP/RTMP |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, CGI, P2P |
| ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | web6 |
|
Interface |
|
| Communication Interface | RJ45 100M/1000M self adaptive Ethernet ports |
| Audio | 2 Mic, 1/1 |
| Alarm | 3/2 |
| Speaker | 2 |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| RS-485 | Yes |
| BNC | N/A |
| Wiper | N/A |
| Electronic Compass | Yes |
| GPS/BDS | Yes |
|
General |
|
| Firmware Version | - |
| Web Client Language | 15 languages Simplified Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
| Operating Conditions | -40°C~70°C, 0-95%RH |
| Power Supply | AC24V±15%, DC24V±10% |
| Power Consumption | Max: 57W |
| Protection | IP66, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Heater | Yes |
| Dimensions | Φ191×344×350mm (Φ7.52×13.54×13.78inch) |
| Weight | 7.2kg (15.87lb) |
