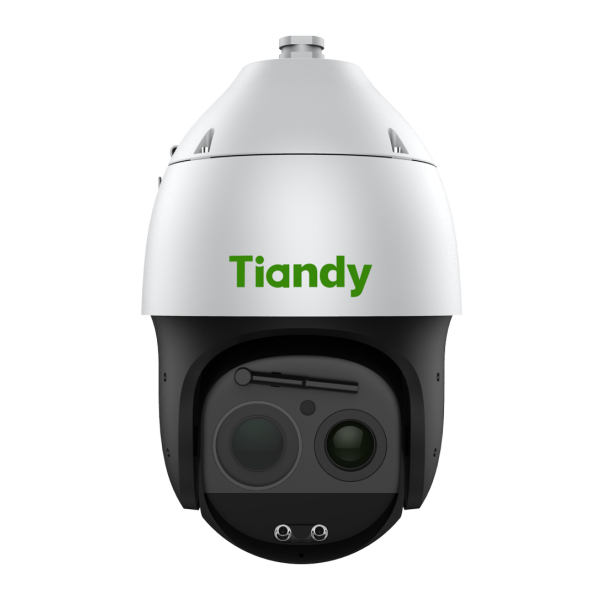

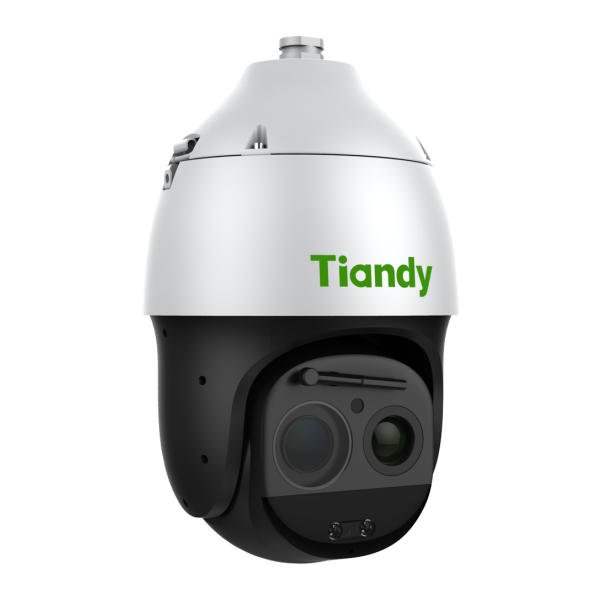

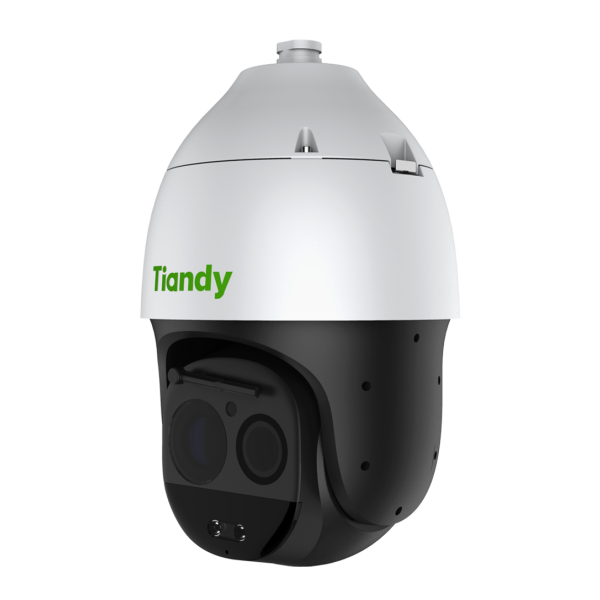

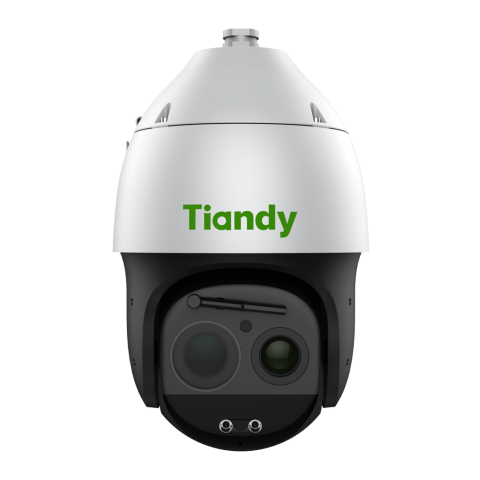

Thermal & Optical Bi-spectrum AI PTZ Camera

Tiandy
TC-H358M
Spec: 44X/IT/A
__________________________________
· Optical and thermal bi-spectrum image
· Thermal Resolution 384×288
· Optical Resolution up to 3072×1728@30fps
· Support Laser Point

· Supports optical and thermal bi-spectrum image

· Vanadium Oxide Uncooled Focal Plane Arrays

· Thermal Resolution 384×288

· Optical Resolution up to 3072×1728@30fps

· Min. illumination Color: 0.001Lux@F1.6

· Optical zoom: 44×, digital zoom 16×

· Smart IR, IR Range: 300m

· Bulit-in Speaker

· Built-in Automatic Wiper

· Built-in Electronic Compass

· Support GPS/BDS

· S+265/H.265/H.264/M-JPEG

· Intelligent monitoring/Face Capture mode

· Support Laser Point

· Support Human/Vehicle Classification

· Plugin Free

· IP66




Thermal parameters

Thermal Sensor Type

Vanadium Oxide Uncooled Focal Plane Arrays

Thermal Length

Fixed 50mm

Resolution

384×288

Piexl Interval

17μm

Response Waveband

8μm~14μm

NETD

≤40mK@f/1.0

Thermal FOV

Horizontal: 7.5°, Vertical: 5.6°

Measurement Distance

Based on the reference:

human (1.8m × 0.5m

vehicle (4m × 1.4m)

Detection: 4510m (vehicle), 1471m (human)

Recognition: 1127m (vehicle), 368m (human)

Identification: 564m (vehicle), 184m (human)

Fire Detection Distance

Based on the reference:

fire (2m×2m)

3000m

Main Stream

PAL: 25fps (384×288)

NTSC: 30fps (384×288)

Sub Stream

PAL: 25fps (384×288) NTSC: 30fps (384×288)

Third Stream

PAL: 25fps (384×288) NTSC: 30fps (384×288)

Camera

Image Sensor

1/1.8" CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.001lux@ (F1.6, AGC ON), BW: 0lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

Dual IR Cut Filter with Auto Switch

Wide Dynamic Range

140dB

Optical Zoom

44×

Digital Zoom

16×

Lens

Focal Length

6mm~264mm

Zoom Speed

<5s

Angle of View

Horizontal filed of view: 61.8° (w)~2.3° (t)

Aperture Range

F1.6~F5.3

Pan&Tilt

Pan Range

360°

Pan Speed

Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 200°/s

Tilt Range

-16°~90° (Auto flip)

Tilt Speed

Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s

3D Position

Yes

Presets

500

Preset Accuracy

±0.3°

Scan

8

Cruise

16, up to 32 presets per cruise

Pattern

8, each with 600s memory or 1000 orders

Power-off Memory

Yes

RS-485 Protocols

DOME_PELCO_D,DOME_PELCO_P,DOME_PLUS

Illuminator

IR LEDs

11

IR Range

Up to 300m

IR Irradiation Angle

Adjustable by Zoom

White LEDs

2, support white/blue/red light flash

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio Bit Rate

8K~48Kbps


Max. Resolution

5.0MP (3072×1728)

Main Stream

PAL: 25fps (3072×1728), 50fps (2560×1440, 2304×1296, 1920x1080, 1280x720)

NTSC: 30fps (3072×1728), 60fps (2560×1440, 2304×1296, 1920x1080, 1280x720)

Sub Stream

PAL: 25fps (704×576, 704×288, 640×360, 352×288)

NTSC: 30fps (704×480, 704×240, 640×360, 352×240)

Third Stream

PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480, 704×288, 352×288)

NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480, 704×240, 352×240)

Image Setting

Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Image Enhancement

BLC/3D DNR/HLC

ROI

7 Dynamic Areas for Both Main and Sub Stream

OSD

16×16, 24×24,32×32, 48×48, 64x64, 96x96, 128×128, adaptable size, Letters such as Week, Date, Time, Total 5 Regions

Picture Overlay

Yes

Privacy Mask

Yes

Smart Defog

Yes

Feature

Alarm Trigger

Harsh Voice Alarm, Motion Detection, Mask Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection

Video Analytics (Optical)

Tripwire, Double Tripwire, Perimeter, Object  Abandon, Object Lost, Loitering, Running, Heatmap, Video Abnormal, Crowd, Audio Abnormal, Demographics(People Counting), On Duty Detection, Safety Helmet Detection, Auto tracking, Face Capture, Early Warning

Video Analytics (Thermal)

Tripwire, Double Tripwire, Perimeter, Temperature Alarm, Fire/Smoke Detection

Early Warning(EW)

Yes

Auto-Tracking

Yes

Face Detection and Analytics

Operating Mode

Face capture, intelligent monitoring optional, default intelligent monitoring

Face Detection Performance

Detects up to 32 faces at the same scene

Face Exposure Brightness

Default 35, 1~100 brightness optional

Min. Face Pixel

Default 80, 19~1920 optional

Precautionary Alert

Three level

Network

Protocols

TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv6/SNMP/SMTP/RTMP

System Compatibility

ONVIF (PROFILE S/T/G), SDK, CGI, P2P

ANR

Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)

Remote Connection

≤7

Client

Easy7, EasyLive

Web Version

web6

Interface

Communication Interface

2 RJ45 100M/1000M self adaptive Ethernet ports

Audio

1/1

Alarm

8/2

Speaker

Yes

Reset Button

Yes

On-board storage

Built-in Micro SD card slot, up to 256 GB

RS-485

Yes

BNC

Yes

Wiper

Yes, automatic wiper

Electronic Compass

Yes

GPS/BDS

Yes

General

Firmware Version

-

Web Client Language

15 languages

Simple Chinese, Traditional Chinese, English, Spanish,  Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese

Operating Conditions

 -40°C~70°C (IR OFF),  -40°C~40°C (IR ON), 0-95%RH

Power Supply

AC24V±25%,DC24V±10%

Power Consumption

30W(IR OFF), 66.96W(IR ON )

Protection

IP66, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017

Heater

N/A

Dimensions

Φ445x700mm (Φ308x506inch)

Weight

11.85kg (21.62lb)
